Lennox 56W26 Limit Switch

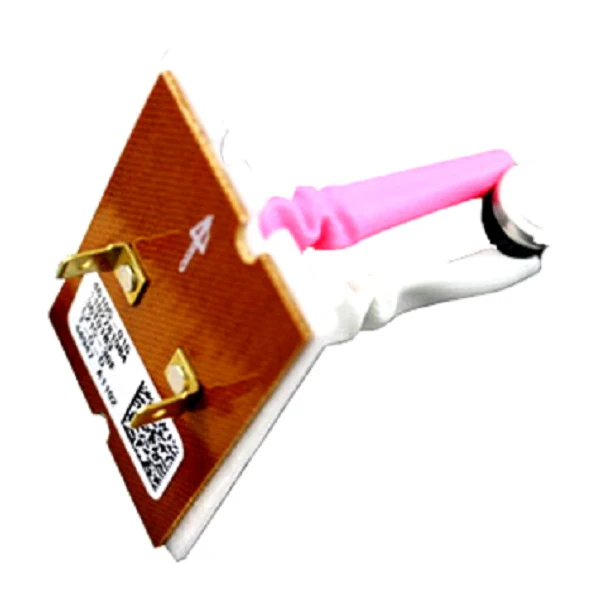

The Lennox 56W26 Limit Switch is a critical safety component engineered for high-temperature monitoring within HVAC combustion chambers. This 185-215F AUTO Limit Switch functions as a normally closed thermal sensitive control that opens the electrical circuit if the furnace temperature exceeds the specified 215°F threshold, preventing heat exchanger damage and potential fire hazards. Designed as a direct OEM furnace replacement part, the 56W26 is frequently utilized in Lennox G61, G61V, and G60 series gas furnaces. This L-215F furnace limit control features an automatic reset mechanism, meaning it will re-establish the circuit once temperatures descend to the 185°F cut-in point. For technicians troubleshooting furnace high limit trips or rollout issues, this part ensures precise thermal calibration and reliable system cycling. When performing a Lennox 56W26 installation, ensure the mounting flange aligns with the original specifications to maintain proper airflow exposure across the sensing element for accurate temperature detection.
Key Benefits for Technicians- Precision Thermal Calibration: Fixed 215°F open and 185°F close settings prevent nuisance tripping while maintaining strict safety standards.
- Direct OEM Compatibility: Engineered specifically for Lennox legacy and modern high-efficiency furnace platforms, ensuring proper fitment and terminal alignment.
- Automatic Reset Functionality: Eliminates the need for manual intervention after temporary over-temperature events once the system cools to safe parameters.
- Durable Construction: Built to withstand the high-cycle demands of residential heating environments without premature contact fatigue.
What causes a Lennox 56W26 limit switch to trip repeatedly?
Frequent tripping is usually indicative of restricted airflow, often caused by a dirty air filter, blocked return air ducts, or a failing blower motor rather than a faulty switch.
Can this 215-degree limit switch be used in other furnace brands?
While the thermal specs may match, this part is designed with specific mounting and terminal configurations for Lennox-built equipment; verify the physical footprint before attempting cross-brand installation.
How do I test the 56W26 for continuity?
Using a multimeter set to ohms, you should read near zero resistance across the terminals when the switch is at room temperature. If the circuit is open while cool, the switch has failed and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lennox 56W26 Limit Switch
The Lennox 56W26 Limit Switch is a critical safety component engineered for high-temperature monitoring within HVAC combustion chambers. This 185-215F AUTO Limit Switch functions as a normally closed thermal sensitive control that opens the electrical circuit if the furnace temperature exceeds the specified 215°F threshold, preventing heat exchanger damage and potential fire hazards. Designed as a direct OEM furnace replacement part, the 56W26 is frequently utilized in Lennox G61, G61V, and G60 series gas furnaces. This L-215F furnace limit control features an automatic reset mechanism, meaning it will re-establish the circuit once temperatures descend to the 185°F cut-in point. For technicians troubleshooting furnace high limit trips or rollout issues, this part ensures precise thermal calibration and reliable system cycling. When performing a Lennox 56W26 installation, ensure the mounting flange aligns with the original specifications to maintain proper airflow exposure across the sensing element for accurate temperature detection.
Key Benefits for Technicians- Precision Thermal Calibration: Fixed 215°F open and 185°F close settings prevent nuisance tripping while maintaining strict safety standards.
- Direct OEM Compatibility: Engineered specifically for Lennox legacy and modern high-efficiency furnace platforms, ensuring proper fitment and terminal alignment.
- Automatic Reset Functionality: Eliminates the need for manual intervention after temporary over-temperature events once the system cools to safe parameters.
- Durable Construction: Built to withstand the high-cycle demands of residential heating environments without premature contact fatigue.
What causes a Lennox 56W26 limit switch to trip repeatedly?
Frequent tripping is usually indicative of restricted airflow, often caused by a dirty air filter, blocked return air ducts, or a failing blower motor rather than a faulty switch.
Can this 215-degree limit switch be used in other furnace brands?
While the thermal specs may match, this part is designed with specific mounting and terminal configurations for Lennox-built equipment; verify the physical footprint before attempting cross-brand installation.
How do I test the 56W26 for continuity?
Using a multimeter set to ohms, you should read near zero resistance across the terminals when the switch is at room temperature. If the circuit is open while cool, the switch has failed and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
