Lennox 56W21 Limit Switch

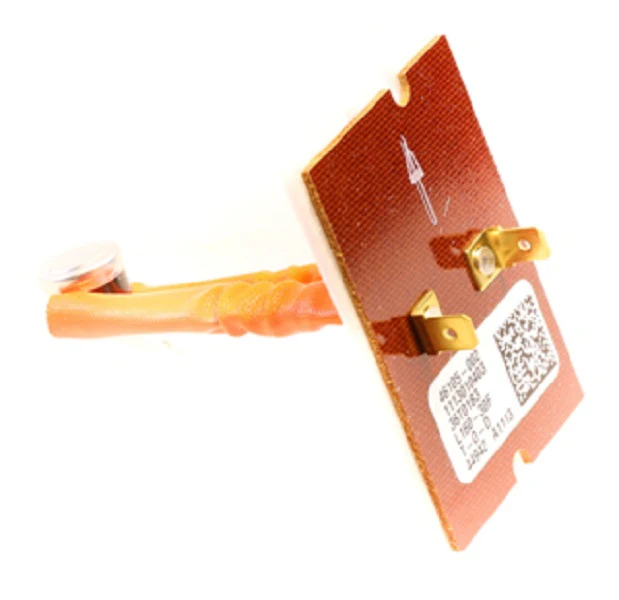

The Lennox 56W21 Limit Switch is a critical safety component designed for precise thermal monitoring in high-efficiency furnaces and air handlers. This L160-30F limit switch is engineered to open the electrical circuit at 160°F on a temperature rise and feature an automatic reset once the plenum cools to 130°F. As a veteran-grade HVAC replacement part, it is a direct match for the Lennox 46105-002 and is compatible with a wide array of Allied Air brands including Armstrong, Concord, and Ducane. Featuring a 3-inch insertion length and an orange sleeve for rapid field identification, this normally closed (NC) switch prevents heat exchanger damage by interrupting the gas valve circuit if airflow is restricted or the blower motor fails. Integrating this OEM Lennox furnace switch ensures the system adheres to the original equipment manufacturer's safety sequence, maintaining the integrity of the high-limit protection loop in residential and light commercial units.
Key Benefits- Precise Thermal Calibration: Calibrated for a 160°F trip point with a 30°F differential, providing reliable over-temperature protection.
- Broad System Compatibility: Serves as a direct 1:1 replacement for part numbers 46105-002, 36T01B3, and R46105-002 across multiple brands.
- Automatic Reset Functionality: Eliminates the need for manual intervention by resetting the circuit automatically at 130°F.
- Robust Build Quality: Designed to withstand the high-temperature environment of the furnace plenum for long-term operational reliability.
How do I troubleshoot a 56W21 limit switch that is stuck open?
First, check for restricted airflow, such as a dirty 16x25x1 filter or a failing indoor blower motor. If airflow is sufficient but the switch lacks continuity at room temperature, the internal bimetallic disc is likely fatigued, and the switch requires replacement.
Is the 56W21 compatible with Armstrong and Ducane units?
Yes. Because Lennox and Allied Air share components, the 56W21 is the standard L160-30F replacement for many Armstrong, Ducane, and Concord furnaces where part number 46105-002 is specified.
What does the orange color coding signify?
In HVAC technical standards, the orange sleeve represents the specific L160-30F thermal profile, allowing technicians to verify the correct temperature range visually during a service call.
