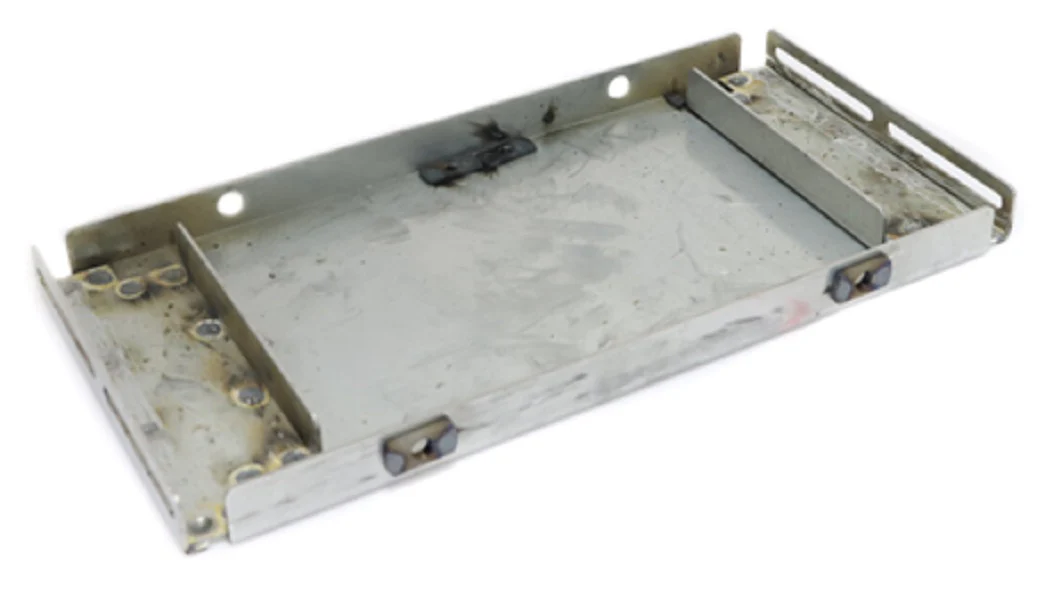

Lennox 54M49 Motor Plate
The Lennox 54M49 Motor Plate is a high-performance belt drive blower motor base engineered for precise alignment in commercial and residential HVAC systems. Constructed from heavy-duty galvanized steel, this OEM replacement part (catalog number LB-101530A) provides the structural rigidity required to stabilize blower motors in air handlers, furnaces, and rooftop units. Its slotted mounting design allows for granular belt tension adjustment, which is critical for reducing mechanical vibration and preventing premature component wear. As a veteran-grade HVAC motor mounting bracket, it ensures the drive package remains squared, maintaining optimal airflow efficiency and system integrity. Weighing approximately 10 lbs, the 54M49 offers a robust foundation that facilitates faster field installs and reliable blower motor alignment. This plate is a direct-fit solution for technicians servicing Lennox HVAC equipment, designed to withstand the high-torque demands of industrial-grade ventilation assemblies without compromising structural tolerances.
Key Benefit
- Enhanced Stability: Heavy-duty galvanized steel construction eliminates blower motor vibration and structural fatigue.
- Precision Alignment: Slotted base design allows for exact belt tensioning, extending the service life of belts and pulleys.
- OEM Compatibility: Engineered as a direct Lennox 54M49 replacement to ensure seamless fitment in air handlers and furnaces.
- Industrial Durability: Corrosion-resistant materials provide long-term performance in high-humidity mechanical environments.
- Optimized Efficiency: Proper motor positioning reduces energy loss and maintains consistent HVAC blower airflow.
Common Question
Which Lennox units are compatible with the 54M49 motor plate?
This plate is primarily utilized in belt-driven blower assemblies found in Lennox commercial air handlers and large-tonnage residential furnaces. Always verify the LB-101530A catalog number against your service manual.
Does this motor plate include mounting hardware?
Standard 54M49 units are the plate only. We recommend retaining your existing fasteners or sourcing Grade 5 steel bolts to ensure the motor is securely torqued to the slotted base.
Why is my current motor plate cracking at the adjustment slots?
Cracking is typically caused by over-tensioned belts or excessive motor vibration. Moving to a genuine Lennox 54M49 provides the reinforced steel gauge necessary to handle high-torque start-ups.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
