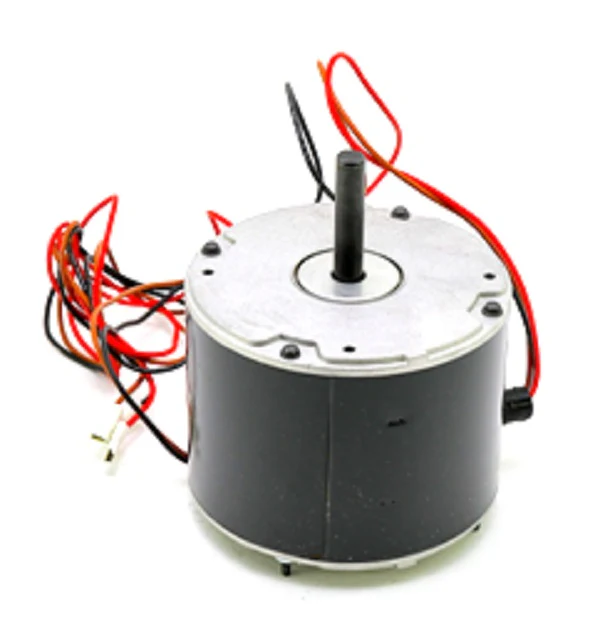

Lennox 52M02 Motor
The Lennox 52M02 Condenser Motor is a heavy-duty, 1/3 HP condenser fan motor designed for high-demand HVACR applications. Operating on 208-230V single-phase power at 1075 RPM, this PSC motor (Permanent Split Capacitor) provides the necessary torque and atmospheric heat exchange required for critical cooling cycles. Built on a standard 48 frame, it features a 1/2 x 2.25-inch shaft and utilizes a 7.5 MFD at 370 VAC capacitor for efficient startup and operation. As a Lennox OEM replacement motor, the 52M02 ensures exact mechanical alignment and electrical compatibility, preventing the common vibration and overheating issues associated with universal alternatives. This HVAC ventilation motor is engineered for vertical stud mounting, featuring a CWLE rotation (Clockwise Lead End) to match the original equipment manufacturer's airflow specifications. Integrating this genuine Lennox 20390814 motor into your service routine maintains system static pressure and protects the compressor from premature wear due to restricted airflow.
Key Benefits- Exact OEM Fit: Eliminates the need for bracket modifications or shaft cutting, speeding up on-site installation for contractors.
- High-Efficiency Performance: The 1075 RPM rating is optimized for Lennox condenser units to ensure proper subcooling and head pressure management.
- Durable Construction: Featuring sleeve bearings and a robust 48 frame housing, it is built to withstand the thermal stresses of outdoor environments.
- System Reliability: Using genuine Lennox parts stabilizes the amp draw, protecting the 208-230V circuit and control board from electrical spikes.
What is the correct capacitor for the Lennox 52M02?
This motor requires a 7.5 MFD / 370 VAC capacitor for proper phase shift and motor longevity. Using an incorrectly rated capacitor can lead to winding failure.
Can this motor replace a 1075 RPM universal 1/3 HP motor?
While specs may match, the 52M02 provides the specific CWLE rotation and stud mounting positions required for Lennox AFGP and local condenser series models.
What are the physical dimensions for mounting?
It utilizes a 48 Frame diameter with a vertical stud mount configuration and a standard 1/2-inch diameter shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
