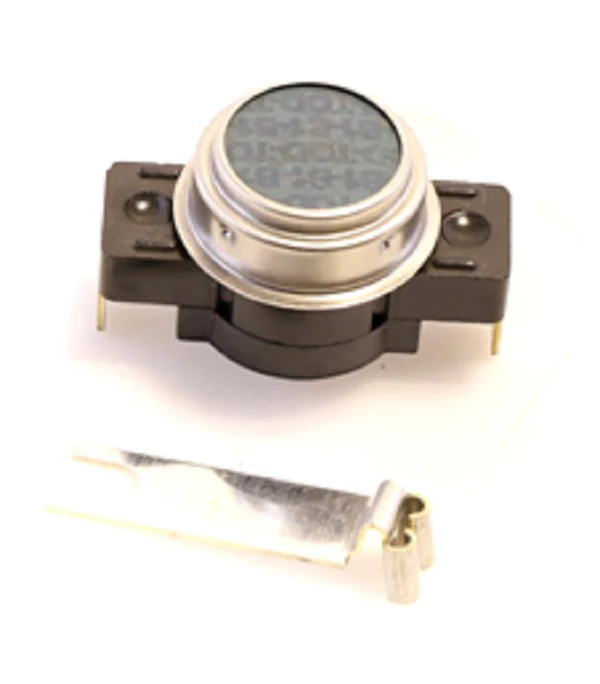

Lennox 50F48 Limit Switch
The Lennox 50F48 Limit Switch is a critical safety component designed for fixed-temperature monitoring in residential and commercial furnaces. This L150-40F limit control serves as a high-heat failsafe, automatically breaking the electrical circuit if the heat exchanger plenum exceeds the preset 150-degree Fahrenheit threshold. Engineered for reliability in Lennox G24 and G26 series units, this switch features a 40-degree differential, allowing for an automatic reset once temperatures drop to 110°F. When troubleshooting furnace short cycling or limit switch tripping, verifying the airflow across the heat exchanger is essential, as this sensor is often the first line of defense against overheating. This OEM Lennox replacement part ensures precise calibration and terminal compatibility, maintaining the thermal integrity of the system without the drift often seen in aftermarket alternatives. Ensuring a secure fit for the Lennox furnace primary limit protects the blower motor and prevents damage to the burner assembly.
- Automatic Reset Functionality: Features a 150°F cutout and 110°F cut-in, ensuring seamless operation once safe temperatures are restored.
- OEM Compatibility: Exact drop-in replacement for Lennox 50F48, 50F4801, and 10L55, reducing installation time in the field.
- High-Temperature Protection: Prevents heat exchanger fatigue by maintaining strict thermal overhead limits.
- Plug-and-Play Design: Standard spade terminal connections and mounting flange allow for quick swap-outs during emergency service calls.
Common HVAC Technical Questions
What causes a Lennox 50F48 to trip frequently?
Frequent tripping usually indicates restricted airflow, such as a clogged MERV-rated filter, a failing blower motor, or undersized ductwork that prevents heat dissipation.
Can I bypass this limit switch for testing?
Bypassing is only acceptable for momentary diagnostic continuity checks. Operating a furnace with a bypassed L150-40 limit switch is a severe fire hazard and will result in heat exchanger failure.
Is this switch compatible with other furnace brands?
While primarily designed for Lennox furnace models, the 50F48 can function in other systems if the temperature ratings (150-40) and mounting footprint align with the original manufacturer specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
