Lennox 49W87 Wiring Harness

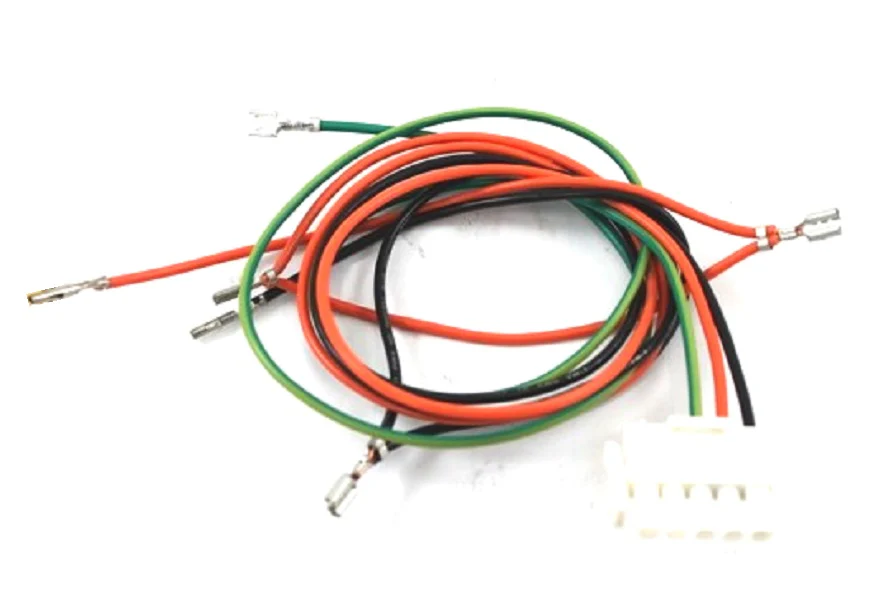

The Lennox 49W87 Wiring Harness (also identified by manufacturer part number LB-74919) is a critical OEM component designed for high-integrity electrical distribution within residential HVAC systems. Engineered to facilitate the secure transmission of power to evaporator coil blowers and control boards, this harness features a 5-pin Molex connector and pre-terminated spade connections to ensure a reliable interface without field splicing. The lead lengths are precisely specified for compatible Lennox air handlers, including specific measurements for the black wire (31 1/4"), orange wire (33 1/2"), and green wire (31"). Constructing a stable electrical path is vital for maintaining consistent communication between the motor and the primary HVAC control board, particularly in multi-stage or variable-speed units where signal precision is non-negotiable. Using a genuine Lennox replacement part like the 49W87 prevents common failure points such as high-resistance connections or insulation breakdown caused by heat and vibration within the cabinet. This HVAC power harness is essential for restoring factory-spec performance during motor replacements or control circuit repairs.
Key Benefits for Technicians- OEM-Spec Compatibility: Guaranteed fit for Lennox CB21-41-3, CB21-51-2, and additional air handler models using the LB-74919 assembly.
- Plug-and-Play Installation: Factory-terminated 5-pin Molex and spade connectors eliminate the need for custom wiring or field-crimping.
- Industrial-Grade Insulation: Designed to withstand the high-temperature environment of an active HVAC cabinet, resisting wear from vibration and thermal cycling.
- Optimized Electrical Flow: Provides a low-resistance path for voltage, protecting sensitive control board circuits and motors from voltage drops.
What are the specific wire lengths for the 49W87 harness?
The harness includes a 31 1/4-inch black wire, a 33 1/2-inch orange wire, and a 31-inch green wire, ensuring sufficient reach within compatible air handler blower decks.
Does this harness support 5-pin motor connections?
Yes, it features a standard 5-pin Molex connector commonly used to interface between the main power supply and Lennox blower motors or control modules.
How do I verify if this fits my specific air handler model?
Consult the unit's wiring diagram or parts list for part number 49W87 or LB-74919. This harness is frequently found in CB21 series air handlers and related residential units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
