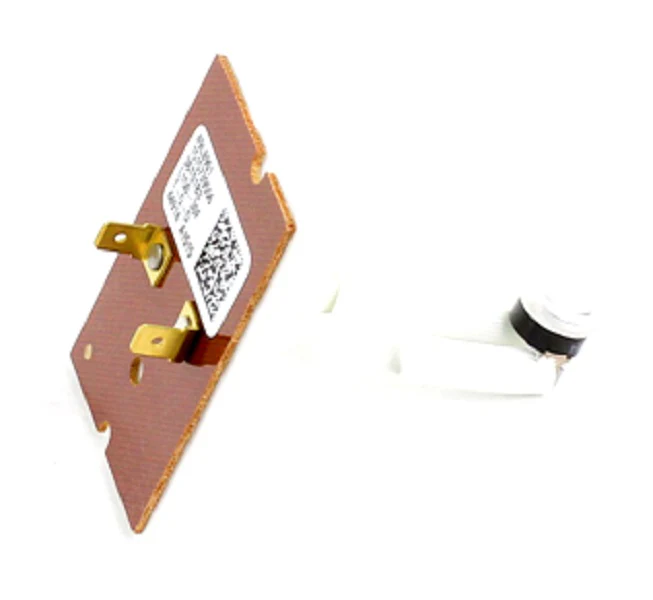

Lennox 49L89 Limit Switch
The Lennox 49L89 Limit Switch is a high-temperature safety control engineered for specific Lennox furnace series and residential heating equipment. This fixed temperature limit switch features an L150-30F configuration, meaning the circuit is designed to open at 150°F on a temperature rise and automatically reset when the temperature drops by 30°F (closing at 120°F). As a critical safety component, the 49L89 prevents heat exchanger damage and hazardous conditions by interrupting the burner circuit if airflow is restricted or the unit exceeds its designed thermal limits.
For field technicians, this Lennox replacement part is essential for restoring 24V control circuit integrity. High-limit failures are often symptomatic of clogged filters, failing blower motors, or cracked heat exchangers. When performing a furnace limit switch replacement, ensure the mounting flange matches the original OEM footprint to maintain the sensor's position within the air stream for accurate thermal detection. This snap-disc limit control utilizes high-grade bimetal construction for reliable cycling and long-term durability in high-cycle environments.
- Precise Thermal Calibration: Calibrated to 150°F trip point with a 30°F differential for consistent furnace safety trip protection.
- OEM Compatibility: Exact Lennox 49L89 drop-in replacement ensures proper fitment and terminal alignment for HVAC preventative maintenance.
- Automatic Reset Functionality: The L150-30F limit switch automatically closes the circuit once temperatures return to safe operating levels, reducing unnecessary downtime.
- Heavy-Duty Construction: Built to withstand the harsh environment of a furnace plenum without drift in trip sensitivity.
Common Questions
What causes a furnace to trip the 49L89 limit switch repeatedly?
Recurring trips usually indicate an airflow restriction. Check for a dirty air filter, blocked return vents, or a failing blower motor capacitor. If the L150-30F switch trips even with clear airflow, the heat exchanger may be overheating or the switch internal bimetal has fatigued.
Can I use a higher temperature limit switch if this one keeps tripping?
No. The Lennox 49L89 is rated specifically for the thermal capacity of the heat exchanger it protects. Installing a higher limit can lead to catastrophic heat exchanger failure or a fire hazard. Always replace with the exact OEM thermal limit specified by the manufacturer.
How do I test if the Lennox 49L89 is defective?
With the power off, use a multimeter to check for continuity across the terminals. At room temperature, the 49L89 limit switch should be normally closed (0 ohms). If the circuit is open at room temperature, the switch has failed and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
