Lennox 49C10 Motor

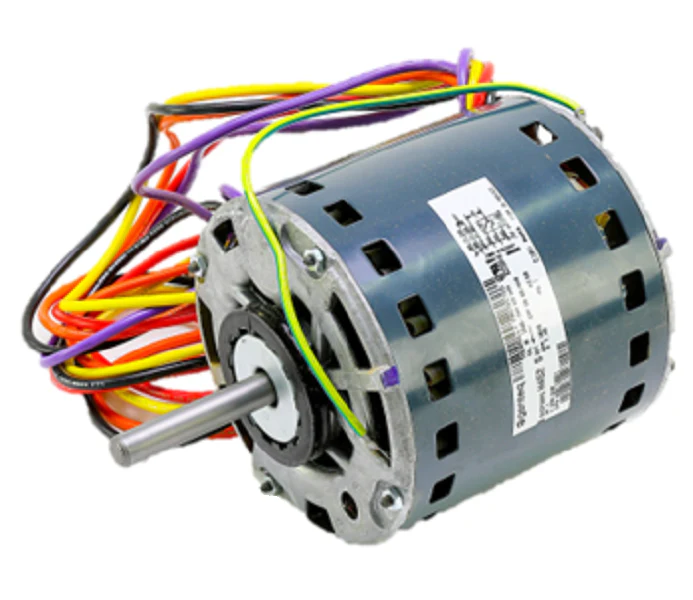

The Lennox 49C10 Blower Motor is a high-performance 1 HP HVAC replacement motor designed specifically for residential and light commercial air handlers and furnaces. Engineering specifications for this Lennox OEM blower motor include a 1020 RPM operating speed and compatibility with 220-240V single-phase electrical systems. Built with a durable aluminum flange and a NEMA 48 frame, the 49C10 motor provides reliable air circulation and resistance to corrosion in demanding environments. For technicians performing a Lennox furnace motor replacement, this 3-speed PSC motor (Model 49C1001) offers the torque necessary to maintain static pressure across the evaporator coil. Professional installation ensures optimal HVAC blower motor efficiency and restores the system's factory-rated airflow. This robust 1020 RPM electric motor is engineered for horizontal mounting with hub ring support, making it a drop-in solution for specific Lennox packaged units and RTUs.
Key Benefits
- OEM Compatibility: Precision-engineered as a direct replacement for Lennox part 49C10 and 49C1001, ensuring seamless integration with existing control boards.
- Enhanced Durability: Features ball bearings and a 5.6-inch diameter frame for long-term mechanical stability under high-cycle loads.
- Multi-Speed Versatility: The 3-speed configuration allows for precise airflow adjustment to meet the specific CFM requirements of the cooling or heating stage.
- Efficient Thermal Management: The aluminum housing promotes superior heat dissipation, protecting the internal windings during continuous operation.
- Industrial Build Quality: High-amperage (7.4A) design provides the power needed to drive heavy blower wheels in large-tonnage air handlers.
Common Questions
What are the signs that my Lennox blower motor is failing?
Technicians typically look for reduced airflow from vents, unusual screeching or grinding noises indicating bearing wear, or the motor drawing excessive amperage and tripping the circuit breaker.
Can I use this motor in a 50Hz or 60Hz system?
The Lennox 49C10 is rated for 220-240V at 50/60Hz, making it suitable for a variety of international and domestic power standards. Always verify the frequency on the existing motor nameplate before installation.
Does this motor require a specific capacitor?
Yes, to ensure proper start torque and running efficiency, this motor typically requires a 20 MFD 440 VAC run capacitor. Using an old or incorrectly sized capacitor can cause the motor to overheat or fail to start.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
