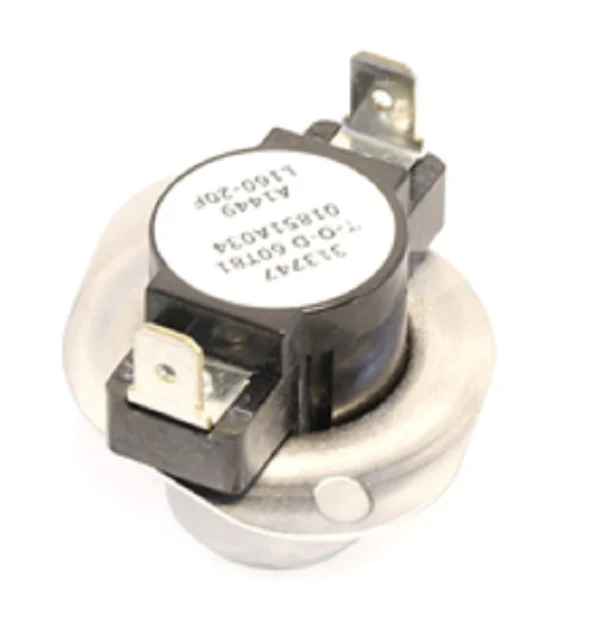

Lennox 46K08 Limit switch
The Lennox 46K08 Limit Switch is a critical safety component designed for precise thermal regulation within residential gas furnaces and air handlers. Engineered for high-reliability applications, this auto-reset limit switch operates within a predefined 140-160F temperature range, ensuring the heat exchanger does not exceed safe operating limits. When the plenum temperature reaches the high-end threshold, the switch opens the electrical circuit to terminate the heating cycle, automatically resetting once the system cools. This Lennox 46K08 furnace sensor is built to OEM specifications to ensure seamless integration with Lennox G24, G26, and G32 series units, maintaining the pressure and airflow dynamics required for efficient combustion. Proper installation of this replacement high limit switch prevents nuisance tripping and protects the blower motor and heat exchanger from thermal stress. For technicians performing furnace limit switch troubleshooting, verifying the Lennox 46K08 specs against the unit's wiring diagram is essential for maintaining system integrity and sequence of operation.
Key Benefits for Technicians- Precision Sensing: Calibrated for 140-160 degree cutout to prevent heat exchanger damage and ensure safe cycles.
- OEM Compatibility: Exact Lennox 46K08 replacement ensures proper fitment and terminal alignment without field modifications.
- Automatic Reset: Eliminates the need for manual intervention after a temporary over-temperature event, reducing callbacks.
- Durable Construction: Built with high-grade bimetal discs and industrial-strength housing for long-term thermal cycling.
What causes a Lennox 46K08 limit switch to trip frequently?
Frequent tripping is usually indicative of restricted airflow, often caused by a dirty air filter, blocked return air ducts, or a failing blower motor. Ensure the 140-160F limit is appropriate for the specific furnace BTU rating.
Is the 46K08 compatible with other HVAC brands?
While this part is an OEM Lennox furnace part, it may be used in compatible Armstrong or Ducane systems that specify the identical temperature profile and mounting footprint.
How do I test the Lennox 46K08 for continuity?
Using a multimeter set to Ohms, measure across the terminals while the switch is cool; it should show a closed circuit. If the switch remains open at room temperature, the bimetal disc has failed and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
