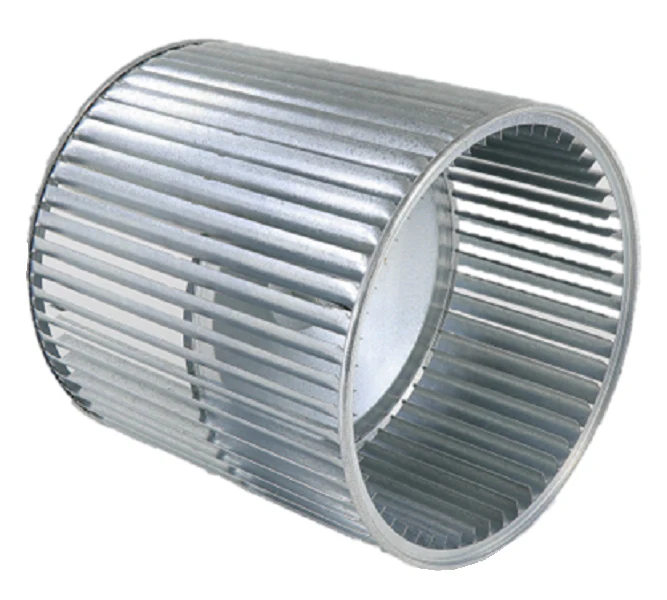

Lennox 45M06 Blower Wheel
The Lennox 45M06 Blower Wheel is a high-precision, OEM HVAC replacement part designed for direct-drive blower assemblies in Lennox furnaces and air handlers. This 11 x 11 blower wheel (catalog number 45M06, model R02592A034) features a 1/2 inch bore size and a CW (clockwise) rotation when viewed from the motor side. Constructed from corrosion-resistant galvanized steel with 54 individual blades, it is engineered to restore factory-spec static pressure and cubic feet per minute (CFM) output. The concave hub design ensures secure seating on the motor shaft, reducing vibration and mechanical strain on the blower motor. Professional technicians utilize this wheel to resolve common system issues such as reduced airflow, noisy furnace operation, and uneven heating. It is a direct fit for Allied, Armstrong, Concord, and Ducane equipment requiring part number 45M0601.
Key Benefits for HVAC Contractors:
- Direct OEM Compatibility: Ensures a perfect fit for Lennox G40, ELO183, and SLO183 series units without the need for housing modifications.
- Optimized Airflow Dynamics: The 11-inch diameter and 11-inch width meet original equipment requirements for energy-efficient HVAC performance.
- High-Speed Stability: Precision-balanced to minimize harmonic resonance and noise during high-RPM cycles.
- Simplified Installation: Single set screw design allows for rapid alignment on a standard 1/2 inch motor shaft.
Common Questions About the Lennox 45M06:
How do I verify the rotation of the 45M06 blower wheel?
The 45M06 is a Clockwise (CW) rotation wheel. When replacing, always check the pitch of the 54 blades against your existing unit to ensure proper airflow direction into the ductwork.
What are the symptoms of a failing blower wheel?
Common signs include a rattling or "thumping" sound, increased vibration throughout the furnace cabinet, and a significant drop in CFM output at the registers. These issues are often caused by dirt buildup, loose hubs, or warped blades.
Is the set screw included with this replacement?
Yes, the Lennox 45M06 Blower Wheel typically includes the integral set screw required to secure the hub to the direct drive blower motor shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
