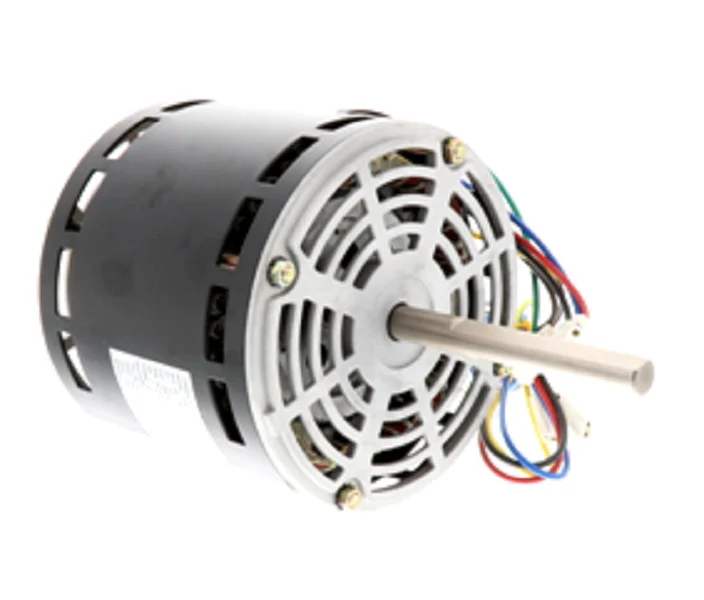

Lennox 41W52 Motor
The Lennox 41W52 Blower Motor is a high-performance PSC (Permanent Split Capacitor) assembly engineered for specific Lennox air handlers and residential furnace configurations. Delivering a reliable 1/3 HP output at 825 RPM, this motor is a critical component for maintaining consistent static pressure and airflow across evaporator coils. Designed for 240V single-phase operation, the 41W52 (also identified by part number 659153-01) features a 3-speed tap design, allowing technicians to fine-tune CFM delivery to meet the specific heating and cooling load requirements of the structure. The 48-frame motor is built with internal thermal overload protection and high-grade ball bearings to ensure smooth, quiet operation in demanding environments. This OEM replacement motor eliminates the mounting and wiring complexities often found with "universal" multi-horsepower alternatives, providing a direct drop-in solution for contractors performing HVAC blower motor repairs.
Key Benefits- 3-Speed Versatility: Features high, medium, and low speed taps to optimize airflow and temperature rise across various system tonnages.
- OEM Compatibility: Precision-engineered for Lennox HVAC systems, ensuring exact physical alignment with 48Y frame belly band or side-shell mountings.
- Robust Electrical Performance: Rated for 240V and approximately 2.0 Amps, maintaining high efficiency while reducing electrical strain on the control board.
- Quiet Operation: The 825 RPM design is specifically selected to move large air volumes while minimizing high-frequency vibration and resonance within the ductwork.
What capacitor is required for the Lennox 41W52?
This 1/3 HP motor typically requires a 15 MFD / 370V run capacitor for proper torque and phase displacement. Always verify the rating on the motor nameplate before installation.
Can I use this to replace a variable speed ECM motor?
No. The 41W52 is a PSC motor. Replacing an ECM with a PSC requires significant modifications to the logic board and system controls, which is not recommended for standard Lennox air handler repairs.
How do I identify a failing blower motor?
Technicians should check for signs such as an overheated motor casing, unusual screeching (bearing failure), or "hunting" where the motor fails to reach sync speed despite receiving full line voltage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $254.24
-65%$254.24
$88.98Lennox 41W52 Motor
The Lennox 41W52 Blower Motor is a high-performance PSC (Permanent Split Capacitor) assembly engineered for specific Lennox air handlers and residential furnace configurations. Delivering a reliable 1/3 HP output at 825 RPM, this motor is a critical component for maintaining consistent static pressure and airflow across evaporator coils. Designed for 240V single-phase operation, the 41W52 (also identified by part number 659153-01) features a 3-speed tap design, allowing technicians to fine-tune CFM delivery to meet the specific heating and cooling load requirements of the structure. The 48-frame motor is built with internal thermal overload protection and high-grade ball bearings to ensure smooth, quiet operation in demanding environments. This OEM replacement motor eliminates the mounting and wiring complexities often found with "universal" multi-horsepower alternatives, providing a direct drop-in solution for contractors performing HVAC blower motor repairs.
Key Benefits- 3-Speed Versatility: Features high, medium, and low speed taps to optimize airflow and temperature rise across various system tonnages.
- OEM Compatibility: Precision-engineered for Lennox HVAC systems, ensuring exact physical alignment with 48Y frame belly band or side-shell mountings.
- Robust Electrical Performance: Rated for 240V and approximately 2.0 Amps, maintaining high efficiency while reducing electrical strain on the control board.
- Quiet Operation: The 825 RPM design is specifically selected to move large air volumes while minimizing high-frequency vibration and resonance within the ductwork.
What capacitor is required for the Lennox 41W52?
This 1/3 HP motor typically requires a 15 MFD / 370V run capacitor for proper torque and phase displacement. Always verify the rating on the motor nameplate before installation.
Can I use this to replace a variable speed ECM motor?
No. The 41W52 is a PSC motor. Replacing an ECM with a PSC requires significant modifications to the logic board and system controls, which is not recommended for standard Lennox air handler repairs.
How do I identify a failing blower motor?
Technicians should check for signs such as an overheated motor casing, unusual screeching (bearing failure), or "hunting" where the motor fails to reach sync speed despite receiving full line voltage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
