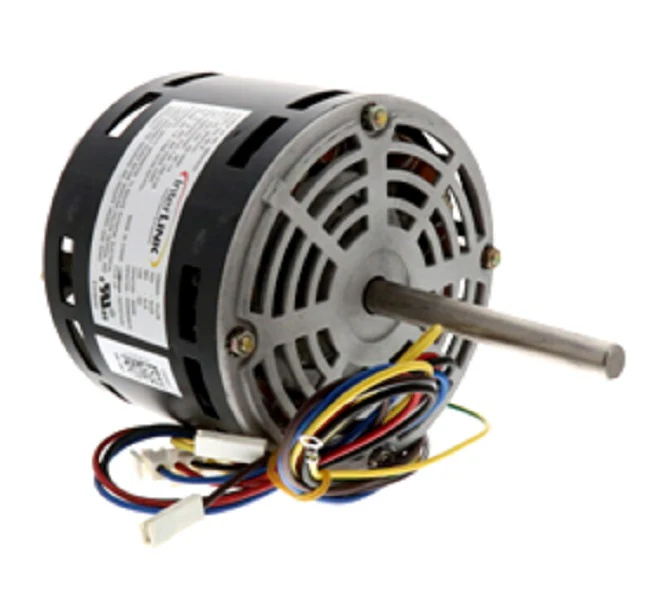

Lennox 41W50 Blower Motor
The Lennox 41W50 Blower Motor is a heavy-duty, 3-speed PSC replacement motor designed for critical airflow applications in residential and light commercial HVAC systems. This 1/4 HP blower motor operates at 240V (single phase) with a rated speed of 825 RPM, delivering the high-torque performance necessary for consistent static pressure management. Featuring a 48Y frame and a 1/2" x 4" single-side flat shaft, the 41W50 is a direct OEM replacement part for Lennox, Allied, and Armstrong air handlers, ensuring seamless mechanical compatibility without the need for mounting modifications.
Built with Class B insulation and thermal protection, this motor is rated for air-over continuous duty, making it a reliable solution for technicians troubleshooting Lennox furnace error code 292 or 201. The unit pulls 1.4 Amps (FLA) and requires a 15 MFD at 370 VAC capacitor for proper startup and run efficiency. Its counter-clockwise lead end (CCWLE) rotation and belly band mounting configuration provide the versatility needed for rapid field installation and restored system performance.
Key Benefits:- Universal Compatibility: Direct substitute for Lennox part numbers 65915101, 100029024, and 614131-170, fitting CB26UH and CBX26UH series units.
- Multi-Speed Flexibility: 3-speed electrical design allows for precise airflow adjustment to meet specific heating and cooling load requirements.
- Industrial Durability: Engineered with an open enclosure for optimal motor cooling and equipped with internal thermal protection to prevent winding failure.
- Quiet Operation: Precision-balanced internal components reduce vibration, extending the life of both the motor and the blower wheel assembly.
What capacitor is required for the Lennox 41W50?
This motor requires a 15 MFD / 370V run capacitor. Using an incorrectly rated capacitor can lead to overheating and premature winding failure.
Can this motor replace a 1075 RPM unit?
No. The 41W50 is rated at 825 RPM. Replacing a motor with a different RPM rating can significantly alter CFM delivery and cause evaporator coil icing or heat exchanger tripping.
How do I resolve a Lennox furnace motor that won't start?
First, verify 240V at the motor leads and inspect the run capacitor. If the motor is humming but not turning, or if you see error code 201 on the control board, the 41W50 is the standard replacement lead.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
