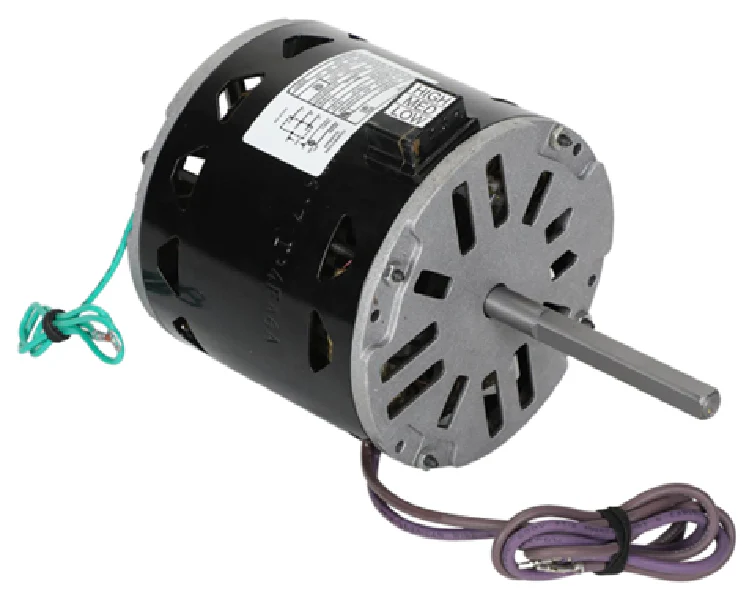

Lennox 36W63 Motor
Optimize your HVAC equipment performance with the Lennox 36W63 Condenser Fan Motor, a heavy-duty 3/4 HP replacement engineered for demanding residential and commercial cooling applications. Operating at 208-230V and a constant speed of 1050 RPM, this single-phase motor provides the precise torque required to drive condenser fan blades in Lennox, Ducane, and Allied Air systems. This 48 Frame HVAC motor serves as a direct replacement for part numbers including 101611-01, ensuring physical and electrical compatibility without the need for mounting modifications.
Designed for continuous duty, the Lennox 36W63 utilizes a sleeve bearing design and a 1/2-inch by 5-inch shaft to maintain balanced airflow across the condenser coils. For service professionals, this motor is a critical component for resolving system overheating or poor heat transfer caused by failing fan assemblies. To ensure peak operational efficiency and long-term reliability, it is highly recommended to pair this installation with a new 12.5 MFD 370 VAC capacitor, as out-of-tolerance capacitors are a primary cause of winding failure in condenser fan motors.
Key Benefits- OEM-Spec 3/4 HP Motor: Verified 1050 RPM output at 208-230V for consistent airflow delivery.
- Broad Compatibility: Designed for Lennox family brands including Allied, Armstrong, Ducane, and Magic-Pak.
- Robust NEMA 48 Frame: Standardized mounting facilitates efficient installation for service technicians.
- Torsion Flex Support: Precision engineering helps reduce operational vibration and noise.
- Engineered for Efficiency: Directly replaces part 101611-01 to restore factory-level performance.
What are the electrical requirements for the Lennox 36W63?
This motor requires a 208-230V single-phase power supply and is rated for 60Hz operation. It typically requires a 12.5 MFD / 370V run capacitor.
Can this motor be used in brands other than Lennox?
Yes, the 36W63 is a standard replacement for several Lennox-owned brands including Ducane, Armstrong, Concord, and Allied Air equipment.
What are the shaft specifications for this part?
It features a 1/2-inch diameter shaft with a 5-inch length, suitable for most blower and condenser fan blade hub depths.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
