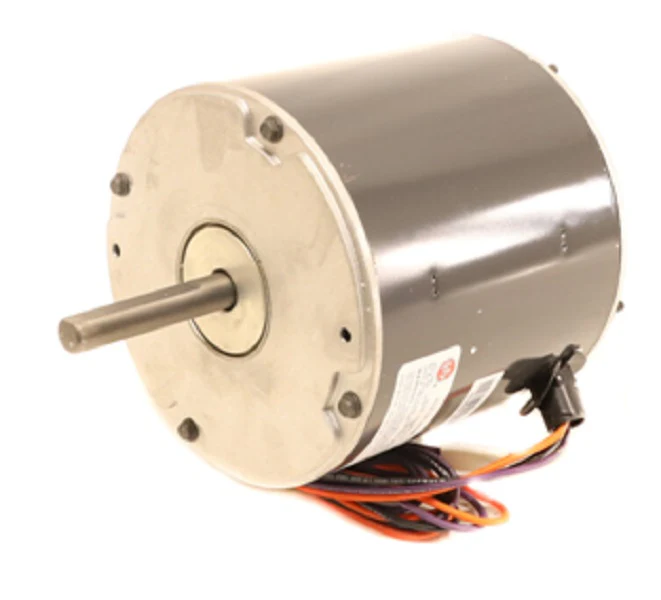

Lennox 36W61 Motor
The Lennox 36W61 is a high-performance OEM condenser fan motor designed for demanding commercial and residential HVAC applications. Engineered for durability, this 460V 1/3 HP motor operates at a precise 825 RPM, providing the consistent torque required to move air across condenser coils efficiently. Built with a robust 48Y frame and a totally enclosed air over (TEAO) enclosure, the 36W61 is protected against environmental contaminants, ensuring long-term reliability in harsh outdoor conditions.
As a veteran-grade replacement motor for Lennox equipment, this unit features a single-phase, 60Hz configuration with ball bearings for reduced friction and heat buildup. When performing a field replacement, ensure you have a 7.5 MFD / 370V capacitor on hand, as matching the secondary electrical components is critical for preventing premature winding failure. The 1/2-inch diameter flat shaft and stud mounting facilitate a direct-fit installation for Lennox, Armstrong, and Ducane units, minimizing downtime during peak service seasons.
Key Benefits- OEM Precision: Correct Lennox 36W61 cross-reference matching ensures perfect alignment with fan blades and original mounting brackets.
- Thermal Protection: Integrated thermally protected circuitry prevents burnout during high-ambient temperature operation.
- Reduced Noise: The 825 RPM low-speed motor design minimizes decibel levels while maintaining necessary static pressure.
- Industrial Build: Heavy-duty US Motors / Nidec construction with Class B insulation for superior heat resistance.
What are the signs that a Lennox 36W61 motor is failing?
Technicians should look for high amp draws, seized shafts, or "humming" without rotation. Excessive vibration often indicates a failing bearing or an unbalanced fan blade that should be inspected during motor replacement.
Is this a direct replacement for 460-volt HVAC systems?
Yes, specifically designed for 460v single-phase power. Verify the data plate on the existing motor to ensure it is not a 208-230V or 575V model, as incorrect voltage will damage the internal windings immediately.
Does this motor include the run capacitor?
No, the capacitor is sold separately. It is standard industry practice to replace the 7.5 MFD 370VAC capacitor when installing a new condenser fan motor to ensure the start and run torque meet factory specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
