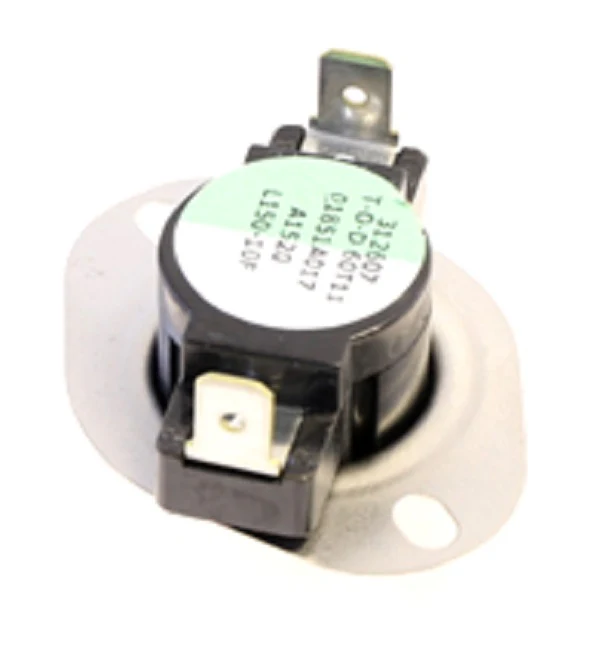

Lennox 36K14 Limit Switch
The Lennox 36K14 Limit Switch is a high-limit safety component engineered for precision temperature monitoring in residential and commercial furnaces. This OEM replacement part operates as an auxiliary limit switch designed with a 150°F open and 140°F close thermal profile. When the heat exchanger air temperature exceeds the 150-degree threshold, the switch opens the circuit to the gas valve, preventing overheating and potential component failure. The 10-degree differential ensures the system returns to a safe operational state once the internal cabinet temperature stabilizes at 140°F.
For contractors performing field service, the 36K14 provides a drop-in replacement for worn bimetal furnace limits. It features standard 1/4-inch male spade terminals for quick integration into the existing HVAC safety circuit. This thermal cutout is a critical furnace replacement part for maintaining UL compliance and ensuring the blower assembly is not circulating air through a compromised heat exchanger. Use this Lennox limit switch to restore factory-spec safety parameters and prevent frequent furnace tripping caused by restricted airflow or failing inducer motors.
- Precise Thermal Calibration: Calibrated for 150°F Open / 140°F Close to maintain strict safety margins.
- OEM Compatibility: Genuine Lennox component ensures correct fitment and terminal alignment in specified furnace models.
- Durable Construction: Features high-grade ceramic or phenolic housing to withstand extreme plenum temperatures.
- Enhanced Equipment Lead Time: Resolves furnace limit switch tripping issues during high-demand heating cycles.
Common Technical Questions
Can I bypass this limit switch for testing purposes?
Temporary bypassing is only for immediate diagnostic tracing of the Lennox furnace flame rollout or overheating circuit; the switch must be installed for permanent operation to prevent heat exchanger damage.
What causes a 150-degree limit switch to trip frequently?
Frequent tripping is usually indicative of a dirty air filter, blocked return air vents, or a failing blower motor assembly reducing CFM across the heat exchanger.
Is the 36K14 compatible with other HVAC brands?
While designed for Lennox, Armstrong, and Ducane equipment, always verify the limit switch temperature rating and mounting orientation before field installation in alternative brands.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
