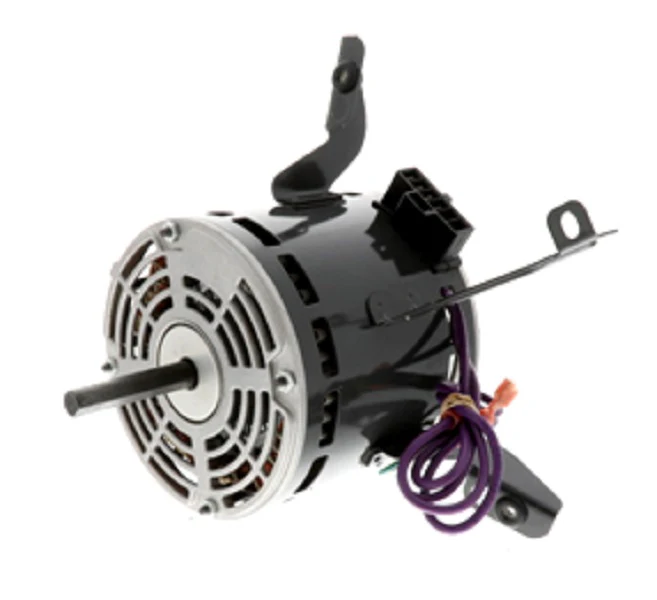

Lennox 34K76 Motor
The Lennox 34K76 is a professional-grade PSC condenser fan motor engineered for direct-drive applications in high-static residential and light commercial HVAC systems. This 1/3 HP motor operates on a 208-230V single-phase power supply and is rated for a nominal 825 RPM, providing the high-torque performance required to maintain critical airflow across the coil. Featuring a multi-speed design, this 3-speed blower motor allows for precise CFM adjustments to match system demand, ensuring optimal heat transfer and pressure stabilization. Built with a durable NEMA 48 frame and featuring a 1/2-inch diameter shaft, it serves as a direct OEM replacement motor for various Lennox, Armstrong, and AirEase units. The permanently lubricated ball bearings and internal thermal overload protection provide sustained reliability in high-ambient environments. When installing this Lennox replacement part, verify the capacitor requirements to ensure peak electrical efficiency and starting torque.
- Multi-Speed Versatility: The 3-speed configuration allows technicians to fine-tune system airflow for specific static pressure requirements.
- High-Ambient Reliability: Engineered for durability, this motor handles the thermal stresses typically found in outdoor condenser sections.
- Direct OEM Fit: Precise mounting dimensions and shaft specifications eliminate the need for field modifications during installation.
- Optimized 825 RPM: Lower speed operation reduces acoustic levels while maintaining necessary head pressure control.
Common Installation Questions
What capacitor is required for the Lennox 34K76?
This motor typically requires a 5 MFD / 370V run capacitor; however, always verify the rating on the motor nameplate during installation to prevent overheating.
Can this motor be used for both clockwise and counter-clockwise rotation?
The 34K76 is designed for specific rotation as per factory lead configuration; always confirm the rotation direction of the existing blade before securing the motor to the bracket.
Is this a suitable replacement for a 1075 RPM motor?
No, replacing a 1075 RPM motor with an 825 RPM motor will lead to insufficient airflow and potential compressor failure due to improper heat dissipation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
