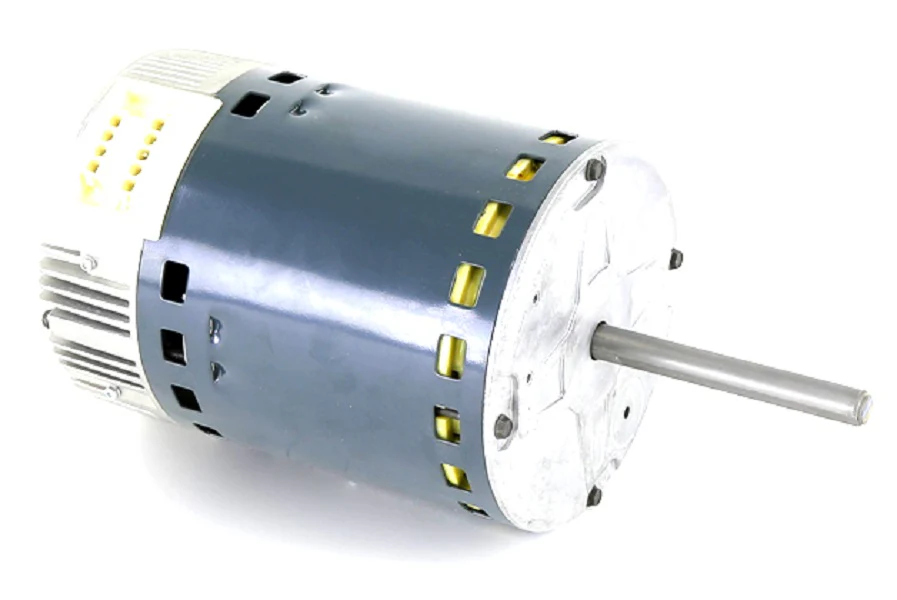

Lennox 33W13 Motor
As a veteran HVAC service technician, you know that when a high-efficiency blower fails, you need a drop-in OEM replacement motor that matches the exact performance curves of the original equipment. The Lennox 33W13 Motor is a 1 HP, 1050 RPM ECM blower motor designed to provide precise airflow modulation in residential and light commercial air handlers and furnaces. Operating on 120/240V single-phase power, this electronically commutated motor supports variable speed logic, ensuring the system maintains static pressure requirements while maximizing HVAC energy efficiency.
This 48-frame Lennox replacement part (also identified as 101564-02) features a reversible rotation and a robust ball-bearing design for extended operational life in high-demand environments. The integrated ECM control module allows for intelligent airflow modulation, reducing equipment downtime and improving indoor comfort. When you are performing a furnace motor replacement, the 33W13 provides the reliability and original equipment manufacturer fit necessary to restore full system functionality without the mounting headaches of universal alternatives.
Key Benefits for Contractors:- Variable Speed Control: Maintains consistent CFM across varying static pressures for optimal climate control.
- Dual Voltage Versatility: Supports both 120V and 240V applications, making it a flexible HVAC part for various job sites.
- High Torque Output: Delivering 80 oz/ft at 1050 RPM, this 1 HP motor handles heavy-duty air distribution with ease.
- ECM 3.0 Technology: Offers significantly lower energy consumption compared to standard PSC motors.
- Reversible Rotation: Simplifies field installation by allowing CW or CCW configuration from the control end.
Is the control module included with the Lennox 33W13?
Yes, this is a complete motor and module assembly, ensuring the programmed parameters match the factory specifications for Lennox equipment.
What are the shaft dimensions for this blower motor?
This motor features a standard 1/2-inch diameter shaft with a length of approximately 3.92 inches, compatible with most OEM blower wheels.
Can I use this to replace a PSC motor?
The 33W13 is an ECM motor. It is designed specifically as a direct replacement for existing ECM systems and is not compatible with standard PSC wiring without significant control board modifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $645.37
-65%$645.37
$225.88Lennox 33W13 Motor
As a veteran HVAC service technician, you know that when a high-efficiency blower fails, you need a drop-in OEM replacement motor that matches the exact performance curves of the original equipment. The Lennox 33W13 Motor is a 1 HP, 1050 RPM ECM blower motor designed to provide precise airflow modulation in residential and light commercial air handlers and furnaces. Operating on 120/240V single-phase power, this electronically commutated motor supports variable speed logic, ensuring the system maintains static pressure requirements while maximizing HVAC energy efficiency.
This 48-frame Lennox replacement part (also identified as 101564-02) features a reversible rotation and a robust ball-bearing design for extended operational life in high-demand environments. The integrated ECM control module allows for intelligent airflow modulation, reducing equipment downtime and improving indoor comfort. When you are performing a furnace motor replacement, the 33W13 provides the reliability and original equipment manufacturer fit necessary to restore full system functionality without the mounting headaches of universal alternatives.
Key Benefits for Contractors:- Variable Speed Control: Maintains consistent CFM across varying static pressures for optimal climate control.
- Dual Voltage Versatility: Supports both 120V and 240V applications, making it a flexible HVAC part for various job sites.
- High Torque Output: Delivering 80 oz/ft at 1050 RPM, this 1 HP motor handles heavy-duty air distribution with ease.
- ECM 3.0 Technology: Offers significantly lower energy consumption compared to standard PSC motors.
- Reversible Rotation: Simplifies field installation by allowing CW or CCW configuration from the control end.
Is the control module included with the Lennox 33W13?
Yes, this is a complete motor and module assembly, ensuring the programmed parameters match the factory specifications for Lennox equipment.
What are the shaft dimensions for this blower motor?
This motor features a standard 1/2-inch diameter shaft with a length of approximately 3.92 inches, compatible with most OEM blower wheels.
Can I use this to replace a PSC motor?
The 33W13 is an ECM motor. It is designed specifically as a direct replacement for existing ECM systems and is not compatible with standard PSC wiring without significant control board modifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
