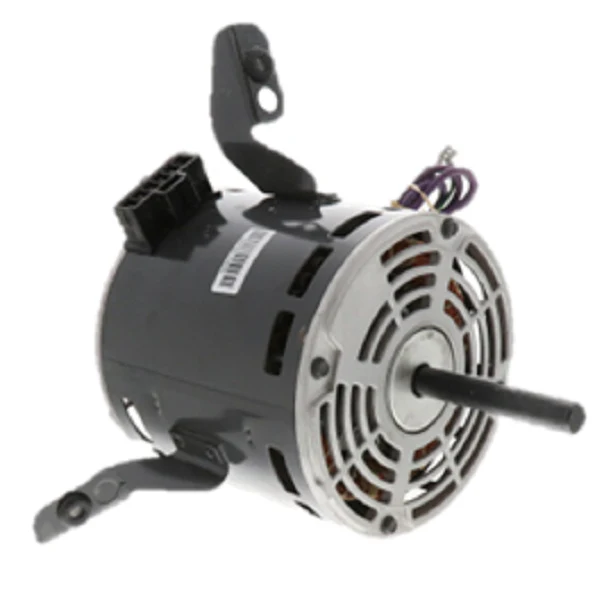

Lennox 29M86 Motor
The Lennox 29M86 Motor is a high-performance 460V 3-phase blower motor engineered for commercial HVAC applications requiring precise 1075 RPM output. This 1/2 HP condenser fan motor features a 3-speed design, allowing for versatile airflow adjustments to meet specific system demands. Built on a 48Y frame with a NEMA 48 diameter, it utilizes sleeve bearings for quiet operation and horizontal mounting. The PSC (Permanent Split Capacitor) configuration ensures high electrical efficiency, while the CCWLE rotation (Counter-Clockwise Lead End) matches standard Lennox and Allied air handler specifications. The motor is constructed with a robust frame and an aluminum flange to resist corrosion in demanding environments. This HVAC blower motor replacement is a direct OEM component designed for seamless compatibility with Lennox commercial units, ensuring reliable performance without the need for field modifications. Integrating this heavy-duty industrial motor helps maintain optimal static pressure and prevents system overheating.
Key Benefits- Multi-Speed Versatility: Three-speed functionality allows for fine-tuning CFM to match specific ductwork requirements.
- Industrial-Grade Construction: Features a moisture-resistant 48-frame design and corrosion-resistant materials for extended service life in rooftop units.
- High-Voltage Efficiency: Optimized for 460V 3-phase power systems, delivering consistent torque and lower amperage draw.
- OEM Precision: Direct replacement for Lennox 29M8601, ensuring correct shaft dimensions (1/2" x 3") and mounting bolt patterns.
What capacitor is required for the Lennox 29M86?
This motor typically requires a 10 MFD 370V run capacitor. It is standard practice to replace the capacitor when installing a new motor to prevent premature winding failure.
Can this 3-phase motor be used on single-phase power?
No, this is a dedicated 460V 3-phase motor. Attempting to run it on single-phase power will cause immediate failure and potential control board damage.
What is the rotation direction for this replacement?
The motor is rated for CCWLE (Counter-Clockwise Lead End). Always verify the fan blade pitch before installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
