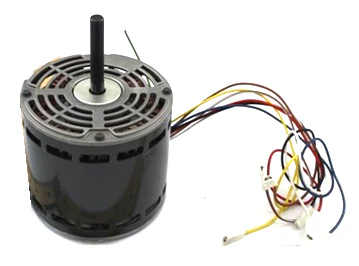

Lennox 28M88 Blower Motor
The Lennox 28M88 Blower Motor is a heavy-duty, 1/2 HP OEM replacement designed for high-static pressure applications in residential and light commercial air handlers and furnaces. Operating at 120V and 1 Phase, this 4-speed motor runs at a nominal 1100 RPM, providing the consistent torque required to move air through restrictive ductwork. Built to 48Y frame specifications, it features a 5-5/8 inch diameter and a 1/2 x 3 inch shaft, ensuring direct physical compatibility with existing Lennox 28M8801 and Emerson 47465-001 mounting configurations. As a Permanent Split Capacitor (PSC) motor, it requires a 7.5 MFD / 370 VAC capacitor (sold separately) for optimal startup and operational efficiency. The CCWLE rotation and horizontal belly band mounting design allow for straightforward installation into blowers used in several Lennox furnace series, and its multi-tap wiring harness simplifies speed adjustment to match the specific CFM requirements of the system.
Key Benefits for HVAC Professionals- Direct OEM Matching: Drop-in replacement for Lennox 28M88 and 28M8801, eliminating the need for field modifications or bracket fabrication.
- Multi-Speed Flexibility: Features 4-speed taps that allow technicians to fine-tune airflow for various cooling and heating stages.
- Rugged PSC Design: Provides a durable, cost-effective alternative to ECM upgrades while maintaining standard 6.5 Amp draw.
- Standardized Housing: The NEMA 48 frame construction fits belly band and cradle mounts commonly used in established furnace models.
Is the 28M88 compatible with the 28M8801?
Yes, these parts are technically identical. The 28M88 is the direct substitute for the 28M8801 and other cross-referenced codes like 47465-001.
What capacitor is required for this motor?
This motor requires a 7.5 MFD 370V run capacitor. Always replace the capacitor when installing a new motor to prevent premature winding failure.
What is the rotation of this blower motor?
The motor is rated for Counter-Clockwise Lead End (CCWLE) rotation, which is standard for most direct-drive furnace blower assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lennox 28M88 Blower Motor
The Lennox 28M88 Blower Motor is a heavy-duty, 1/2 HP OEM replacement designed for high-static pressure applications in residential and light commercial air handlers and furnaces. Operating at 120V and 1 Phase, this 4-speed motor runs at a nominal 1100 RPM, providing the consistent torque required to move air through restrictive ductwork. Built to 48Y frame specifications, it features a 5-5/8 inch diameter and a 1/2 x 3 inch shaft, ensuring direct physical compatibility with existing Lennox 28M8801 and Emerson 47465-001 mounting configurations. As a Permanent Split Capacitor (PSC) motor, it requires a 7.5 MFD / 370 VAC capacitor (sold separately) for optimal startup and operational efficiency. The CCWLE rotation and horizontal belly band mounting design allow for straightforward installation into blowers used in several Lennox furnace series, and its multi-tap wiring harness simplifies speed adjustment to match the specific CFM requirements of the system.
Key Benefits for HVAC Professionals- Direct OEM Matching: Drop-in replacement for Lennox 28M88 and 28M8801, eliminating the need for field modifications or bracket fabrication.
- Multi-Speed Flexibility: Features 4-speed taps that allow technicians to fine-tune airflow for various cooling and heating stages.
- Rugged PSC Design: Provides a durable, cost-effective alternative to ECM upgrades while maintaining standard 6.5 Amp draw.
- Standardized Housing: The NEMA 48 frame construction fits belly band and cradle mounts commonly used in established furnace models.
Is the 28M88 compatible with the 28M8801?
Yes, these parts are technically identical. The 28M88 is the direct substitute for the 28M8801 and other cross-referenced codes like 47465-001.
What capacitor is required for this motor?
This motor requires a 7.5 MFD 370V run capacitor. Always replace the capacitor when installing a new motor to prevent premature winding failure.
What is the rotation of this blower motor?
The motor is rated for Counter-Clockwise Lead End (CCWLE) rotation, which is standard for most direct-drive furnace blower assemblies.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
