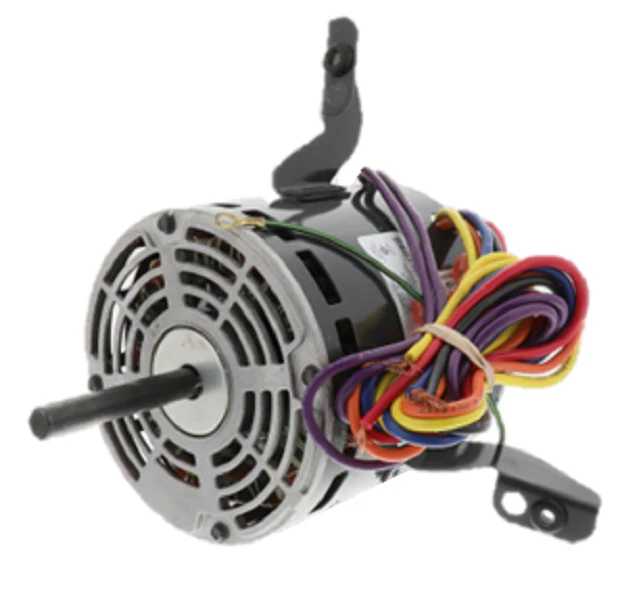

Lennox 28G16 Motor
If you are pulling a 460V single-phase motor in the field, the Lennox 28G16 Motor is the direct OEM specification for critical supply blower applications. This 1/2 HP 460V 1075 RPM motor is a Permanent Split Capacitor (PSC) design, engineered for high-static pressure environments. Built with a NEMA 48 frame, this unit features a 3-speed configuration and a standard 1/2-inch by 2.5-inch shaft, ensuring compatibility with Lennox blower motor assemblies in commercial and high-voltage residential units. Whether you are replacing a seized 28G1601 or performing a preventative upgrade, this motor facilitates an identical drop-in fit. The CCWLE rotation and sleeve bearing design provide consistent airflow across the evaporator coil, maintaining factory-rated static pressure and system efficiency. To ensure long-term performance, technicians should always verify the 10 MFD 370 VAC capacitor rating during installation.
- OEM Precision: Direct replacement for Lennox 28G1601, maintaining original equipment performance and mounting alignment.
- Versatile Speeds: Features 3-speed taps for precise airflow balancing and system tuning.
- Durable Construction: Heavy-duty 48 frame housing with sleeve bearings designed for horizontal mounting applications.
- Optimal Performance: Operates at a steady 1075 RPM to provide the necessary CFM for 460V single-phase HVAC systems.
Common Questions
What is the correct capacitor for the Lennox 28G16?
This motor requires a 10 MFD 370 VAC run capacitor for proper torque and thermal management. Using an old or out-of-tolerance capacitor can lead to premature winding failure.
Can this motor be used in a 230V application?
No, this is a dedicated 460V single-phase motor. Attempting to run this on 208/230V power will result in insufficient torque and motor stall.
Is the rotation reversible on the 28G16?
This specific model is hard-wired for CCWLE (Counter Clockwise Lead End) rotation. Always check the original motor's rotation before ordering to ensure correct blower wheel operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
