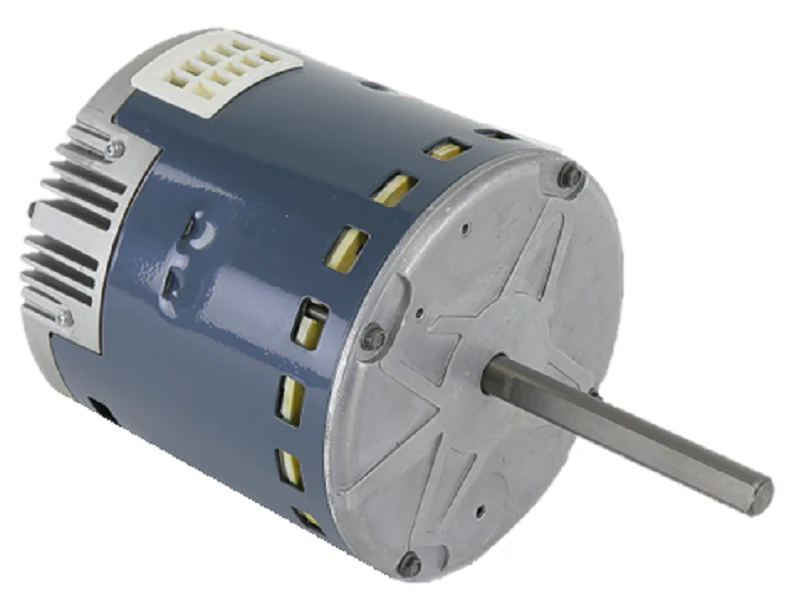

Lennox 27W72 Blower Motor
The Lennox 27W72 Blower Motor is a factory-programmed, 1/2 HP ECM blower motor engineered for specific Lennox air handlers and furnaces. As an authentic OEM part 101207-02, this electronically commutated motor provides high-efficiency performance with a variable-speed range of 600-1200 RPM. Operating at 208-230V and 4.1 amps, it features a 48 frame diameter and a 1/2" x 3.92" shaft. This direct drive motor is also recognized by technical cross-references including Regal Beloit 5SME39HXL015A. Designed for horizontal mounting using a belly band, the unit utilizes sealed ball bearings and is phased for 60Hz, 1-phase electrical systems. Utilizing a genuine Lennox replacement motor ensures the integrated control board communicates correctly with the system logic, maintaining secondary heat exchanger protection and specific airflow profiles required for specialized HVAC repair and maintenance.
Key Benefits for the Contractor:- OEM Compatibility: Factory-programmed specifically for Lennox logic, eliminating the need for field programming or modules.
- Variable Speed Efficiency: High-efficiency ECM technology lowers electrical consumption compared to standard PSC motors.
- Direct Replacement: Matches Regal Beloit 5SME39HXL015A specifications, ensuring physical and electrical alignment.
- Robust Construction: Features ball bearings and a CCWLE (Counter-Clockwise Lead End) rotation for residential airflow applications.
Is the Lennox 27W72 pre-programmed?
Yes, this is a factory-configured ECM variable speed motor. It is programmed to specific airflow parameters for compatible Lennox equipment and does not require additional software setup in the field.
What is the correct rotation for this motor?
This unit is designed for CCWLE (Counter-Clockwise Lead End) rotation. Always verify the rotation of the existing blower wheel before installation to ensure static pressure remains within design limits.
Can I use a belly band mount with this motor?
Yes, this is a 48 frame motor with a 5.58-inch diameter, making it compatible with standard belly band mounting kits for horizontal airflow configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $668.21
-65%$668.21
$233.87Lennox 27W72 Blower Motor
The Lennox 27W72 Blower Motor is a factory-programmed, 1/2 HP ECM blower motor engineered for specific Lennox air handlers and furnaces. As an authentic OEM part 101207-02, this electronically commutated motor provides high-efficiency performance with a variable-speed range of 600-1200 RPM. Operating at 208-230V and 4.1 amps, it features a 48 frame diameter and a 1/2" x 3.92" shaft. This direct drive motor is also recognized by technical cross-references including Regal Beloit 5SME39HXL015A. Designed for horizontal mounting using a belly band, the unit utilizes sealed ball bearings and is phased for 60Hz, 1-phase electrical systems. Utilizing a genuine Lennox replacement motor ensures the integrated control board communicates correctly with the system logic, maintaining secondary heat exchanger protection and specific airflow profiles required for specialized HVAC repair and maintenance.
Key Benefits for the Contractor:- OEM Compatibility: Factory-programmed specifically for Lennox logic, eliminating the need for field programming or modules.
- Variable Speed Efficiency: High-efficiency ECM technology lowers electrical consumption compared to standard PSC motors.
- Direct Replacement: Matches Regal Beloit 5SME39HXL015A specifications, ensuring physical and electrical alignment.
- Robust Construction: Features ball bearings and a CCWLE (Counter-Clockwise Lead End) rotation for residential airflow applications.
Is the Lennox 27W72 pre-programmed?
Yes, this is a factory-configured ECM variable speed motor. It is programmed to specific airflow parameters for compatible Lennox equipment and does not require additional software setup in the field.
What is the correct rotation for this motor?
This unit is designed for CCWLE (Counter-Clockwise Lead End) rotation. Always verify the rotation of the existing blower wheel before installation to ensure static pressure remains within design limits.
Can I use a belly band mount with this motor?
Yes, this is a 48 frame motor with a 5.58-inch diameter, making it compatible with standard belly band mounting kits for horizontal airflow configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
