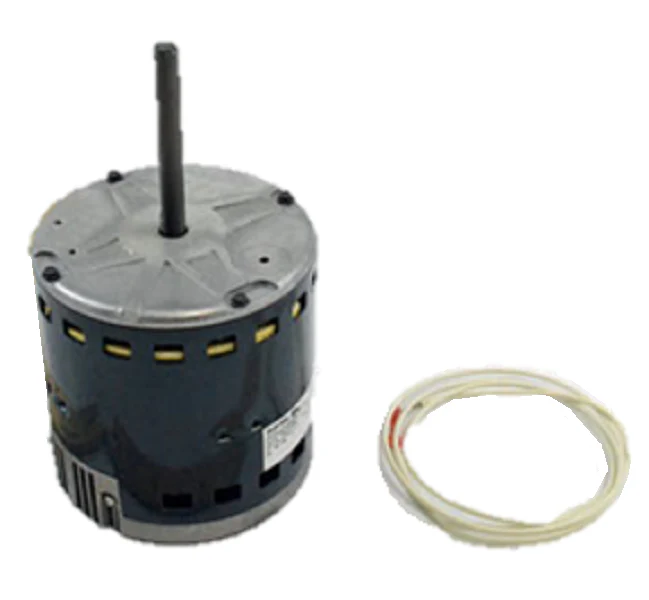

Lennox 27W71 Motor
When you're out in the field and a furnace fan starts "dancing" or failing to ramp up under load, you're likely looking at a compromised Lennox 27W71 Motor. This 1/2 HP ECM Blower Motor is an OEM replacement designed to handle the variable static pressure demands of high-efficiency Lennox furnace and air handler units. Operating at 208-230V, this Genteq X13 constant-torque motor replaces the older Lennox 101207-01 and features a 5-speed brushless DC design that maintains 600-1200 RPM. As a veteran, you know these electronically commutated motors are sensitive to poorly conditioned power; however, this factory-programmed 27W71 unit ensures the correct torque curves for HVAC blower motor performance without the headache of manual programming. The 48-frame assembly includes a 1/2-inch flat shaft and ball bearings for quiet, vertical or horizontal air over operation in Lennox residential HVAC systems.
Key Benefits:- Factory Programmed: Pre-loaded with Lennox-specific torque profiles for plug-and-play installation.
- High Efficiency: The ECM technology utilizes constant torque to reduce energy consumption compared to traditional PSC motors.
- Universal Mounting: Designed for belly band or shell-band mounting with a standard 48 NEMA frame size.
- Robust Build: Includes permanently lubricated ball bearings to withstand high static pressure environments.
- Multi-Speed Compatibility: Features a 5-tap interface to match specific CFM requirements for heating and cooling cycles.
- Is the Lennox 27W71 a direct replacement for 101207-01? Yes, this is the current OEM replacement for the 101207-01 model, sharing the same 1/2 HP rating and voltage requirements.
- Does this motor require a capacitor? No, being an ECM, it uses an internal control module and does not require an external run capacitor.
- What causes these ECM modules to fail prematurely? Most failures result from moisture, voltage spikes, or high static pressure caused by restricted ductwork or dirty filters, which forces the motor to ramp up torque and heat.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Lennox 27W71 Motor
When you're out in the field and a furnace fan starts "dancing" or failing to ramp up under load, you're likely looking at a compromised Lennox 27W71 Motor. This 1/2 HP ECM Blower Motor is an OEM replacement designed to handle the variable static pressure demands of high-efficiency Lennox furnace and air handler units. Operating at 208-230V, this Genteq X13 constant-torque motor replaces the older Lennox 101207-01 and features a 5-speed brushless DC design that maintains 600-1200 RPM. As a veteran, you know these electronically commutated motors are sensitive to poorly conditioned power; however, this factory-programmed 27W71 unit ensures the correct torque curves for HVAC blower motor performance without the headache of manual programming. The 48-frame assembly includes a 1/2-inch flat shaft and ball bearings for quiet, vertical or horizontal air over operation in Lennox residential HVAC systems.
Key Benefits:- Factory Programmed: Pre-loaded with Lennox-specific torque profiles for plug-and-play installation.
- High Efficiency: The ECM technology utilizes constant torque to reduce energy consumption compared to traditional PSC motors.
- Universal Mounting: Designed for belly band or shell-band mounting with a standard 48 NEMA frame size.
- Robust Build: Includes permanently lubricated ball bearings to withstand high static pressure environments.
- Multi-Speed Compatibility: Features a 5-tap interface to match specific CFM requirements for heating and cooling cycles.
- Is the Lennox 27W71 a direct replacement for 101207-01? Yes, this is the current OEM replacement for the 101207-01 model, sharing the same 1/2 HP rating and voltage requirements.
- Does this motor require a capacitor? No, being an ECM, it uses an internal control module and does not require an external run capacitor.
- What causes these ECM modules to fail prematurely? Most failures result from moisture, voltage spikes, or high static pressure caused by restricted ductwork or dirty filters, which forces the motor to ramp up torque and heat.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
