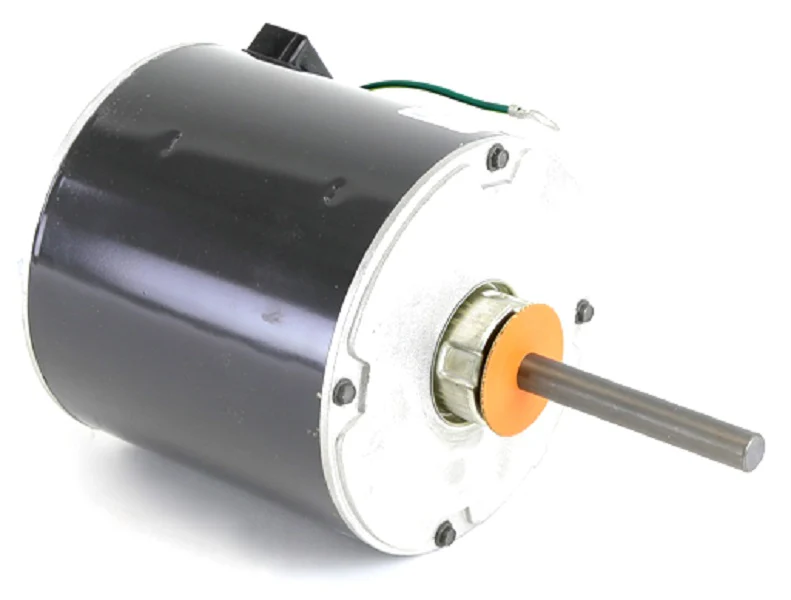

Lennox 27J30 Fan Motor
The Lennox 27J30, also identified by part number 27J3001, is a heavy-duty 1/2 HP condenser fan motor designed for direct-drive applications in Lennox residential and light commercial condensing units. This PSC (Permanent Split Capacitor) motor operates at 230V, single-phase, delivering a steady 1075 RPM to maintain optimal head pressure and heat transfer across the coil. Engineered with a 48-frame diameter and an all-angle mounting configuration, it serves as a versatile drop-in HVAC replacement motor for failed OEM blowers or fan assemblies. The CCW (Counter-Clockwise) rotation and standard shaft dimensions ensure seamless integration with existing fan blades. Built with Class B insulation and thermal overload protection, the 27J3001 fan motor is rated for continuous duty in high-ambient environments, providing the reliability required for critical cooling cycles. Its electrical specifications and physical footprint make it a primary Lennox OEM parts solution for restoring system efficiency and airflow performance.
Key Benefits for Contractors- Universal 48-Frame Design: Facilitates easy installation in a variety of Lennox condensing units and matched air handlers.
- OEM Compatibility: Exact replacement for Lennox 27J30 and 27J3001, eliminating the need for bracket modifications or field adjustments.
- High-Torque Performance: The 1/2 HP 1075 RPM output provides the necessary static pressure to handle demanding cooling loads.
- Thermal Protection: Internal auto-reset overload protection prevents windings from burning out during voltage fluctuations or restricted airflow.
- All-Angle Bearings: Durable bearing system allows for vertical shaft-up, shaft-down, or horizontal mounting positions.
What capacitor is required for the Lennox 27J30?
This motor typically requires a 7.5 MFD / 370V or 10 MFD / 370V run capacitor; always verify the rating on the motor nameplate or existing unit schematic before installation.
Can this motor replace a 1/3 HP fan motor?
While a 1/2 HP motor can handle a 1/3 HP load, ensure the RPM, voltage, and frame size match exactly to avoid over-amping the circuit or improper fan blade pitch performance.
Is the rotation reversible on the 27J3001?
The standard 27J30 is usually lead-reversible or fixed CCW; always check the lead wires and rotation arrow on the motor housing during the bench test prior to mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
