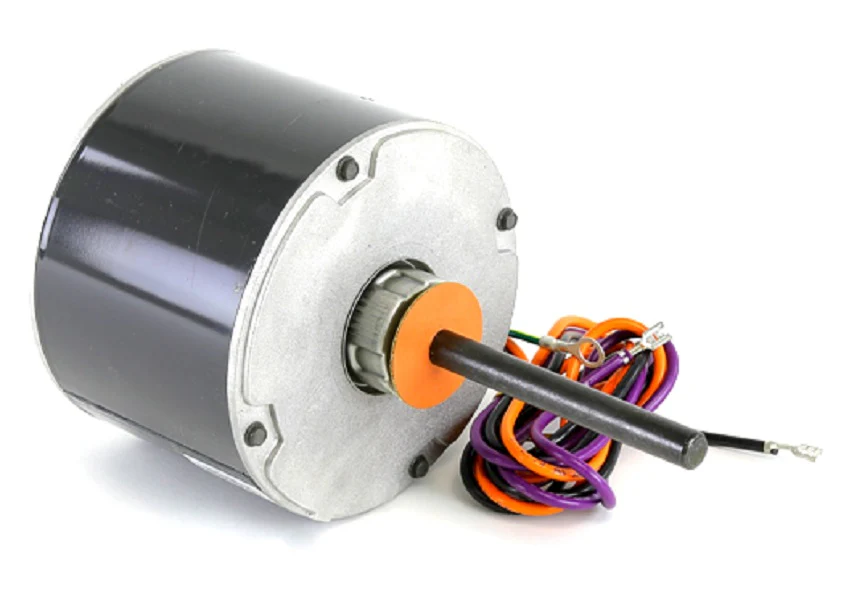

Lennox 27H34 Motor
The Lennox 27H34 Motor is a high-performance OEM condenser fan motor designed specifically for compatibility with residential and light commercial cooling units. Operating at 208/230V and 1/10 HP, this 825 RPM HVAC motor provides the critical airflow needed to dissipate heat from the condenser coils efficiently. As a PSC (Permanent Split Capacitor) motor, it features a NEMA 48 frame and requires a 3.75 MFD 370 VAC capacitor for proper startup and torque. Built with a durable sleeve bearing system and CCWLE rotation (counter-clockwise from lead end), this 1-speed motor is engineered to handle vertical-mount belly band applications common in Lennox and Allied Air systems. For field technicians, the 27H34 ensures a precise fit and 60Hz electrical matching, eliminating the mounting headaches often found with "universal" aftermarket alternatives.
Key Benefits- Exact OEM Specifications: Maintains original system airflow and static pressure without the need for additional bracket modifications.
- High Internal Protection: Designed for vertical mounting with sleeve bearings for quiet, vibration-free operation in outdoor environments.
- Optimized Efficiency: The 1/10 HP 825 RPM profile is calibrated to provide consistent cooling while minimizing amperage draw.
- Technical Reliability: Features a 1/2" x 5" shaft and specialized 48-frame housing for standard belly band motor mounts.
- What is the correct rotation for the 27H34 motor? This motor is designed with CCWLE (Counter-Clockwise Lead End) rotation. Always verify your fan blade pitch before installation to ensure proper airflow direction.
- Do I need to replace the capacitor at the same time? Yes. To prevent premature failure, it is standard practice to install a new 3.75 MFD 370 VAC capacitor with this motor.
- Will this fit my Lennox package unit? This motor is a standard replacement for many HP21 and similar Lennox-series units. Check your existing motor plate for the 27H3401 or 27H34 part number to confirm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $241.66
-65%$241.66
$84.58Lennox 27H34 Motor
The Lennox 27H34 Motor is a high-performance OEM condenser fan motor designed specifically for compatibility with residential and light commercial cooling units. Operating at 208/230V and 1/10 HP, this 825 RPM HVAC motor provides the critical airflow needed to dissipate heat from the condenser coils efficiently. As a PSC (Permanent Split Capacitor) motor, it features a NEMA 48 frame and requires a 3.75 MFD 370 VAC capacitor for proper startup and torque. Built with a durable sleeve bearing system and CCWLE rotation (counter-clockwise from lead end), this 1-speed motor is engineered to handle vertical-mount belly band applications common in Lennox and Allied Air systems. For field technicians, the 27H34 ensures a precise fit and 60Hz electrical matching, eliminating the mounting headaches often found with "universal" aftermarket alternatives.
Key Benefits- Exact OEM Specifications: Maintains original system airflow and static pressure without the need for additional bracket modifications.
- High Internal Protection: Designed for vertical mounting with sleeve bearings for quiet, vibration-free operation in outdoor environments.
- Optimized Efficiency: The 1/10 HP 825 RPM profile is calibrated to provide consistent cooling while minimizing amperage draw.
- Technical Reliability: Features a 1/2" x 5" shaft and specialized 48-frame housing for standard belly band motor mounts.
- What is the correct rotation for the 27H34 motor? This motor is designed with CCWLE (Counter-Clockwise Lead End) rotation. Always verify your fan blade pitch before installation to ensure proper airflow direction.
- Do I need to replace the capacitor at the same time? Yes. To prevent premature failure, it is standard practice to install a new 3.75 MFD 370 VAC capacitor with this motor.
- Will this fit my Lennox package unit? This motor is a standard replacement for many HP21 and similar Lennox-series units. Check your existing motor plate for the 27H3401 or 27H34 part number to confirm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
