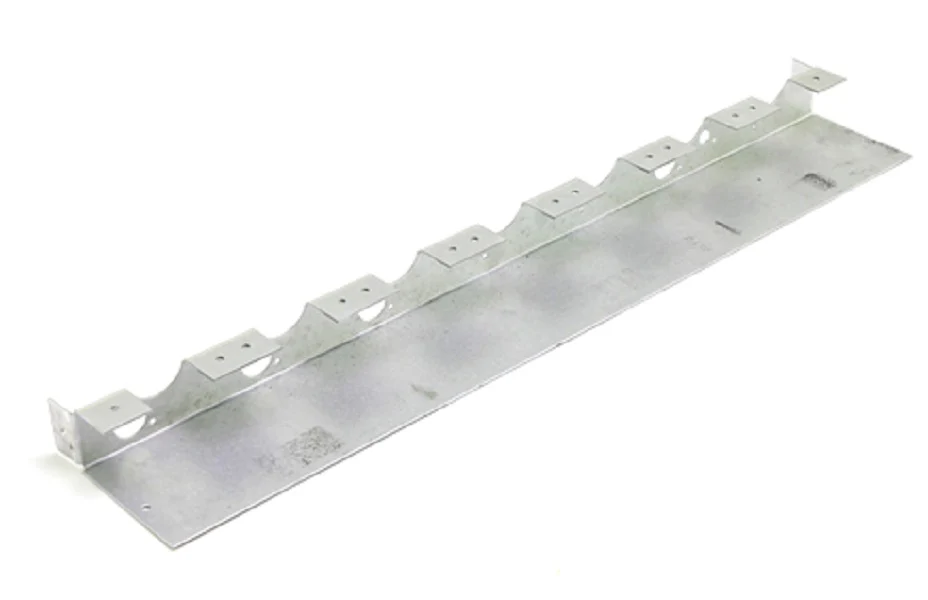

Lennox 25W92 Support Bracket
Secure your burner assembly with the Lennox 25W92 Support Bracket, a heavy-duty OEM replacement part engineered for precise alignment in commercial gas furnaces and and rooftop units. Formerly identified by part number LB-109751, this burner support bracket provides the structural rigidity necessary to prevent manifold sag and ensure consistent pilot or igniter positioning. Constructed from high-grade stainless steel, it is designed to withstand high-temperature combustion environments without warping or losing tension. For technicians servicing Lennox KGA024S4, KGA030S4, and similar series, this furnace burner bracket is critical for maintaining the specific 1/16-inch leveling tolerance required for optimal heat exchanger performance. Whether you are performing a full burner tray overhaul or a routine component swap, utilizing genuine Lennox HVAC parts ensures that your gas train remains centered, reducing the risk of delayed ignition or flame rollout caused by misaligned individual burner tubes.
Key Benefits- Precise Component Alignment: Engineered to hold standard Lennox burner tubes in the exact factory-specified orientation for uniform heat distribution.
- High-Heat Resistance: The stainless steel construction prevents oxidative scaling and structural failure within the burner compartment.
- Direct OEM Compatibility: Replaces Lennox LB-109751, ensuring a perfect fit without the need for field modifications or drilling.
- Reduced Mechanical Noise: Eliminates vibration-induced rattling by providing a sturdy foundation for the burner assembly.
Does this bracket include the mounting hardware?
Usually, the Lennox 25W92 is supplied as the bracket only. If your existing fasteners are corroded from high-heat exposure, we recommend sourcing stainless steel self-tapping screws for a secure re-installation.
Will this fit residential Lennox G series furnaces?
This Lennox burner support is primarily found in commercial rooftop units like the Landmark series. Always verify your specific Lennox model number and consult the parts arrangement diagram before installation.
Is this compatible with propane (LP) burner conversions?
Yes, the 25W92 support bracket is a structural mounting component and is compatible with both natural gas and LP burner orifices as long as the burner manifold dimensions are consistent with the OEM design.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
