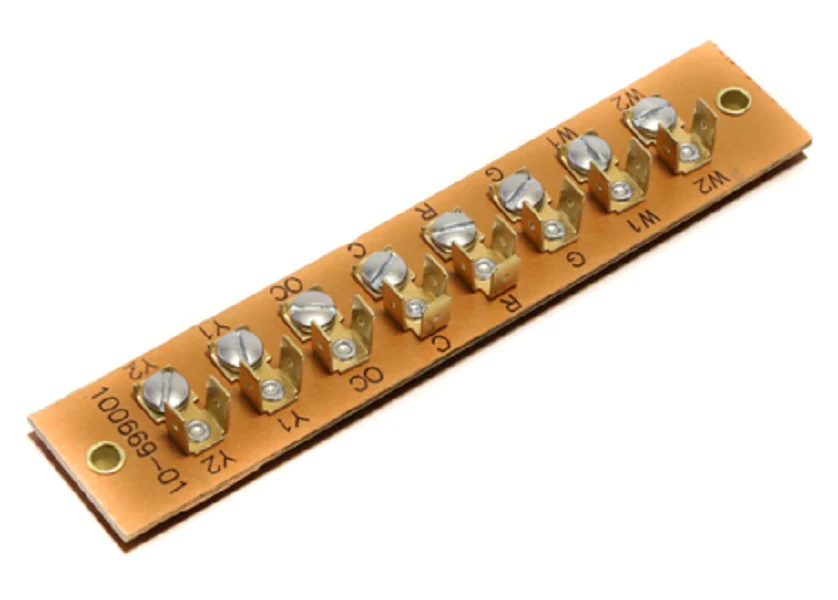

Lennox 25W68 Strip Terminal
The Lennox 25W68 Strip Terminal is a critical 8-position low-voltage terminal strip engineered for high-performance HVAC electrical connections. Designed to provide a secure and organized termination point for low-voltage control wiring, this genuine OEM replacement part ensures seamless integration with a wide range of Lennox rooftop units and packaged AC systems, including the KCA, KGB, and KCB series. Field technicians often rely on this heavy-duty terminal block to resolve issues related to intermittent signal loss or electrical continuity failures within the control circuit. By maintaining precise terminal spacing and robust conduit connection points, the 25W68 minimizes the risk of short circuits and terminal overheating. Whether you are performing a routine HVAC preventive maintenance check or a full system overhaul, utilizing this application-specific terminal strip maintains the integrity of the diagnostic path between the thermostat interface and the unit control board. Its 8x1.25-inch footprint allows for easy installation in tight vestibules, ensuring reliable signal transmission for consistent equipment operation in demanding commercial and residential environments.
- OEM Precision: Guaranteed exact-fit compatibility with Lennox LHT and K-series units, eliminating the need for field modifications.
- Circuit Integrity: Provides 8 distinct positions to manage multi-stage cooling and auxiliary heating connections without signal interference.
- Resilient Construction: Built with high-grade insulating materials to prevent arc-over and maintain low-voltage stability under high thermal loads.
- Rapid Troubleshooting: Simplifies wiring architecture for faster HVAC diagnostic testing and multi-meter readings during service calls.
Common Questions
Which Lennox models are compatible with this strip terminal?
The Lennox 25W68 is a standard low-voltage terminal strip used across hundreds of models, specifically fitting Lennox KCA, KCB, and KGB packaged units. It is essential for managing the 24V control wiring in these specific chassis series.
Can this terminal strip be used for line-voltage applications?
No, this component is specifically rated as a low-voltage terminal strip. It should only be used for 24V control circuits, such as thermostat wiring and sensor inputs, to avoid terminal melt-down or electrical hazards.
What causes a terminal strip to fail in a rooftop unit?
Failure is typically caused by terminal oxidation, loose wire nut connections leading to high-resistance heat, or physical damage during HVAC part replacement. Swapping to a new OEM terminal strip restores clean electrical contact points.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
