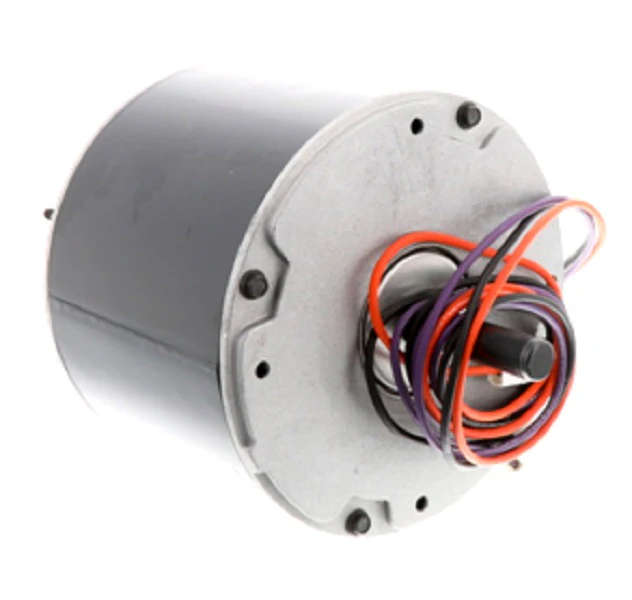

Lennox 25W17 Motor
This Lennox 25W17 OEM condenser fan motor is the professional-grade solution for restoring thermal exchange in high-voltage residential and light commercial cooling systems. Operating at 460V single-phase with a 1/6 HP output, this PSC (Permanent Split Capacitor) motor is engineered for a sustained 1075 RPM to maintain the precise static pressure required by Lennox condensing units. The CCWLE (Counter-Clockwise Lead End) rotation matches specific original equipment configurations, ensuring that fan blade pitch aligns perfectly for maximum CFM delivery without overloading the 0.55A circuit. Built with a 48-frame open vented enclosure, this direct drive motor allows for superior heat dissipation during peak summer cycles. For an efficient swap, verify that your 5 MFD 370 VAC capacitor is within tolerance, as a weak start signal often mimics motor failure in Lennox 100483-08 motor replacements. This authentic condenser fan motor replacement provides the heavy-duty reliability required by veteran contractors for critical HVAC maintenance.
Key Benefits
- OEM Compatibility: Seamlessly replaces Lennox 100483-08 and 25W17 460V motor models without bracket modifications.
- Power Efficiency: Low 0.55 Amp draw on a single-phase 460V circuit reduces operational energy costs.
- Optimized Airflow: Sustained 1075 RPM ensures consistent heat rejection across the condenser coils.
- Durable Construction: Features a rugged 48-frame design and sleeve bearings for quiet, vertical-mount performance.
- Thermal Protection: Integrated auto-reset thermal overload prevents stator damage during extreme ambient conditions.
Common Questions
What are the signs of a failing Lennox 25W17 motor?
Technicians typically look for a buzzing sound from the outdoor unit, a hot motor casing, or a fan blade that resists manual rotation, indicating seized bearings. If the motor hums but fails to start, the capacitor should be tested first.
What size capacitor is required for this 1/6 HP motor?
This motor requires a 5 MFD / 370V run capacitor for proper torque and phase displacement. Reusing an old capacitor is not recommended, as it can significantly shorten the life of the new windings.
Can I use this motor in a 230V system?
No. This is a 460V-specific component. Applying lower voltage will result in insufficient torque and immediate overheating, while higher voltage will cause catastrophic failure of the internal insulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
