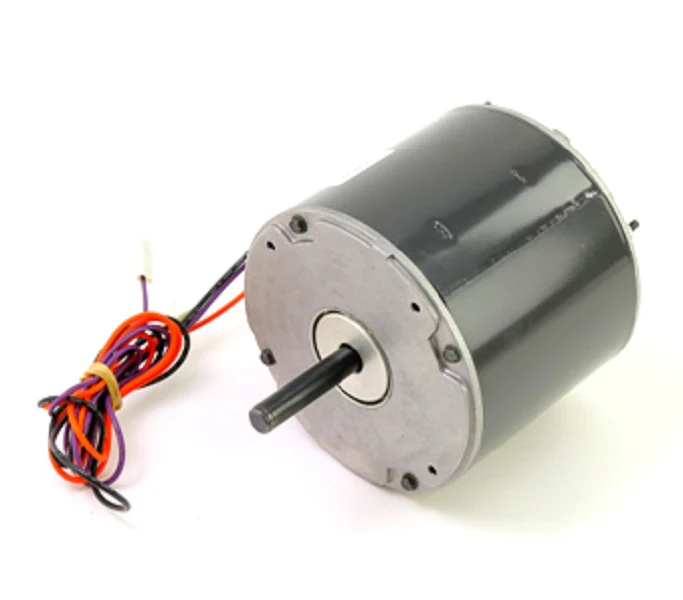

Lennox 25W16 Motor
The Lennox 25W16 is a professional-grade condenser fan motor designed for high-voltage commercial HVAC applications. Operating at 460V, 1-phase, this 1/3 HP PSC motor provides a reliable 1075 RPM output to maintain critical head pressure and ensure efficient heat rejection across the outdoor coil. Built with all-angle sleeve bearings and a totally enclosed air over (TEAO) enclosure, the 25W16 is engineered to withstand the thermal stresses of continuous duty in demanding environments. This Lennox OEM replacement motor utilizes a 48-frame diameter and requires a 7.5 MFD / 440V capacitor for proper phase shift and torque. When replacing failed units, technicians should verify rotation direction and shaft dimensions to ensure a seamless drop-in fit. This industrial HVAC motor is a direct solution for restoring system performance in Lennox rooftop units and commercial split systems where motor winding integrity and amperage draw are critical to long-term reliability.
Key Benefits for Contractors- OEM Compatibility: Precision-engineered as a direct replacement for Lennox 25W16, reducing field modification time.
- High-Voltage Efficiency: Optimized for 460V power supplies, ensuring stable performance in commercial electrical grids.
- Enhanced Durability: The TEAO design protects internal components from dust, moisture, and debris for extended service life.
- Standardized Mounting: Features a standard 48-frame profile compatible with existing motor mounts and brackets.
- Reliable Heat Dissipation: Maintains 1075 RPM to provide consistent airflow across condenser fins, preventing compressor overheating.
What is the correct capacitor rating for the Lennox 25W16?
This motor requires a 7.5 MFD 440V run capacitor. Using an undersized or oversized capacitor can lead to increased motor winding temperature and premature failure.
Can this motor be used in 230V applications?
No, the 25W16 is a dedicated 460V AC motor. Connecting it to a lower voltage will result in insufficient torque and potential electrical damage to the unit.
Is the rotation reversible on this specific model?
The 25W16 is typically fixed for a specific rotation. Always check the lead wire configuration and the rotation arrow on the original Lennox housing before installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
