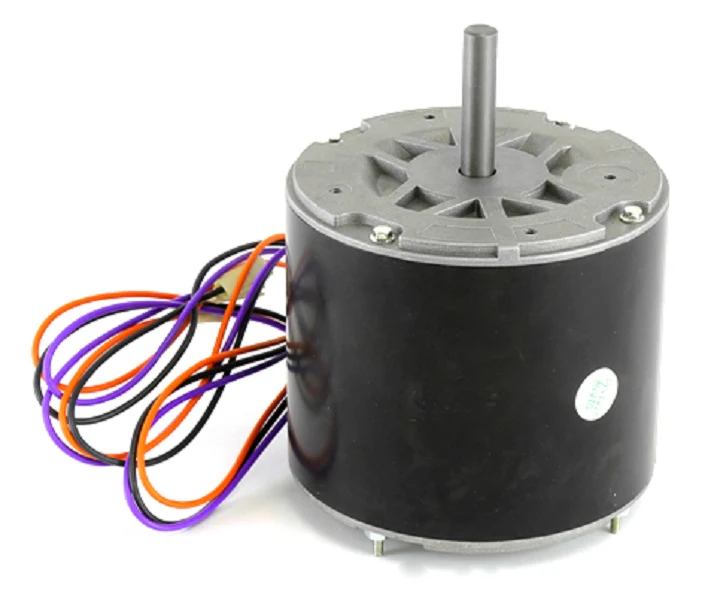

Lennox 25W15 Motor
The Lennox 25W15 is a high-performance condenser fan motor engineered for specific Lennox, Armstrong, and Allied commercial and residential condensing units. This 1/4 HP HVAC motor operates at 825 RPM, delivering the high-torque, low-speed airflow necessary for efficient heat rejection in 460V systems. Built to OEM specifications, this motor features a 48-frame diameter and utilizes a permanent split capacitor (PSC) design, ensuring reliable startup and consistent performance under heavy thermal loads. Technicians should note the CCWLE rotation (Counter-Clockwise Lead End) and the requirement for a 5 MFD / 370V capacitor to maintain proper amperage draws and prevent winding stress.
Designed for demanding environments, the Lennox 100483-09 motor includes internal thermal protection and sleeve bearings for quiet operation. This 460V 1-phase motor is a direct replacement for various TSA and TPA series models. Installing a genuine Lennox 25W15 replacement motor ensures proper physical fitment, eliminating the need for mounting bracket modifications or shaft adjustments in the field.
Key Benefits- Direct OEM Fitment: Replaces Lennox 100483-09 and InterLink YSLB-230-8-B001 without modification.
- Optimized Performance: Fixed 825 RPM speed calibrated for precise condenser airflow and system head pressure control.
- Robust Construction: Specifically designed for 460V single-phase power configurations common in commercial HVAC applications.
- Thermal Protection: Integrated internal protection helps prevent motor burnout during extreme ambient temperature conditions.
What capacitor is required for the Lennox 25W15?
This motor requires a 5 MFD / 370VAC capacitor. It is highly recommended to replace the run capacitor whenever installing a new motor to ensure optimal torque and winding longevity.
Which direction does this motor rotate?
The rotational direction is CCWLE (Counter-Clockwise Lead End). Always verify the fan blade pitch before installation to ensure correct airflow direction through the condenser coil.
Can this motor be used in 208-230V applications?
No, this is a 460V primary motor. Running this part at a lower voltage will result in insufficient torque and immediate electrical failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
