Lennox 24W69 Motor

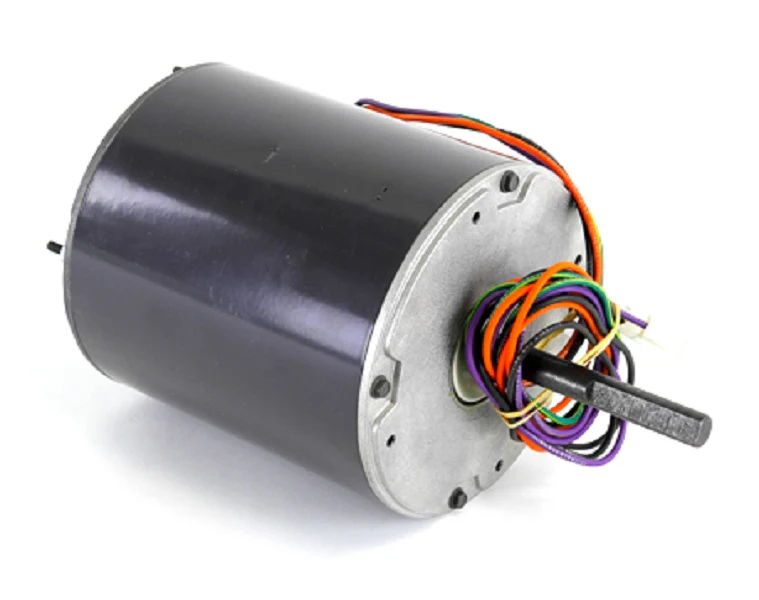

The Lennox 24W69 (100483-16) is a high-performance PSC condenser fan motor designed for direct integration into Lennox, Allied, and Armstrong outdoor units. Operating at 208-230V single-phase, this 1/5 HP motor is engineered for a fixed speed of 825 RPM, providing the necessary torque to maintain optimal airflow across the condenser coils. Its NEMA 48 frame construction with a 1/2-inch x 3.63-inch shaft allows for seamless mechanical mounting, while the 1.10 Amp draw ensures efficient power consumption during continuous air-over duty cycles.
For technicians performing a field HVAC motor replacement, the 24W69 features CCWLE (counter-clockwise lead end) rotation and requires a 10 MFD 370 VAC capacitor for proper startup and run performance. This Lennox OEM fan motor utilizes sleeve bearings and is thermally protected to handle high ambient temperatures common in residential and light commercial condenser sections. Its robust design replaces several previous part numbers, including 18W12 and 100483-14, making it a critical stock item for maintaining system cooling capacity and head pressure regulation.
Key Benefit List:- OEM Compatibility: Precision-engineered for direct fitment in Lennox XP15, XC15, and XPG15 series, eliminating the need for mounting bracket modifications.
- Optimized Airflow: The 825 RPM speed rating is specifically calibrated for condenser heat rejection, preventing high-pressure trips in extreme weather.
- Durable Construction: Features a totally enclosed air-over (TEAO) design and thermal protection to extend service life in harsh outdoor environments.
- Technician-Ready: Standard 1/2-inch shaft diameter and stud mounting ensure a quick, reliable install on the job site.
What capacitor is required for the Lennox 24W69 motor?
This motor requires a 10 MFD / 370V run capacitor. Utilizing an old or out-of-tolerance capacitor can lead to overheating and premature winding failure.
Can this motor replace a 1075 RPM motor?
No. The 24W69 is rated for 825 RPM. Replacing it with a higher RPM motor may overload the circuit or cause incorrect refrigerant pressures due to excessive airflow.
Is the rotation reversible?
The standard rotation is Counter-Clockwise Lead End (CCWLE). Always verify the fan blade pitch before installation to ensure proper airflow direction through the coil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
