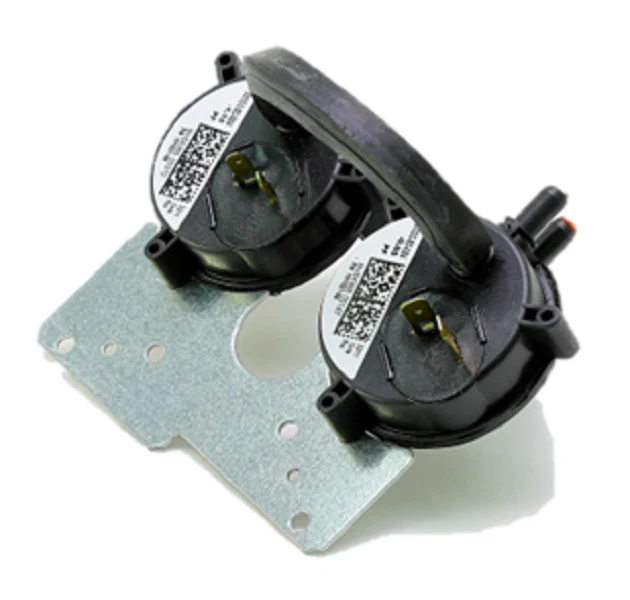

Lennox 24W51 Pressure Switch
The Lennox 24W51 Pressure Switch is a critical safety component designed for two-stage high-efficiency gas furnaces. This dual-stage pressure switch is calibrated to monitor combustion air blower performance, ensuring the system operates within specific Inches Water Column (WC) parameters. Featuring set points of .65" WC and 1.15" WC, this assembly prevents unsafe ignition by verifying that the inducer motor is moving sufficient air to clear flue gases before the burner cycle begins. Built for precise electrical response and durability in high-cycle environments, this direct replacement Lennox furnace part ensures your system maintains its AFUE rating and operational safety logic.
Key Technical Benefits
- Dual-Stage Precision: Engineered specifically for Lennox 2-stage furnaces to manage both low and high-fire combustion cycles safely.
- OEM Compatibility: Replaces Lennox 24W51 and 103554-04, ensuring drop-in fitment without the need for mounting modifications or bracket adjustments.
- Critical Safety Logic: High-sensitivity diaphragms detect venting obstructions or inducer motor failure, instantly opening the circuit to prevent hazardous operation.
- Corrosion Resistance: Housing and terminals are designed to withstand the humidity and temperature fluctuations common in residential HVAC mechanical rooms.
Common Installation and Technical Questions
How do I troubleshoot a 24W51 pressure switch error code?
Technicians should verify inducer motor RPM, check for blocked vent pipes, and use a manometer to confirm if the actual pressure matches the .65/1.15" WC factory specifications before replacing the switch.
Can this switch be used in single-stage Lennox units?
No, this is a two-stage pressure switch assembly. Installing it in a single-stage unit will cause control board compatibility issues and prevents the furnace from completing its sequence of operation.
Does the orientation of the 24W51 matter during installation?
Yes, to prevent moisture accumulation in the diaphragm, always mount the switch in the vertical position as specified by the manufacturer's technical bulletin.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
