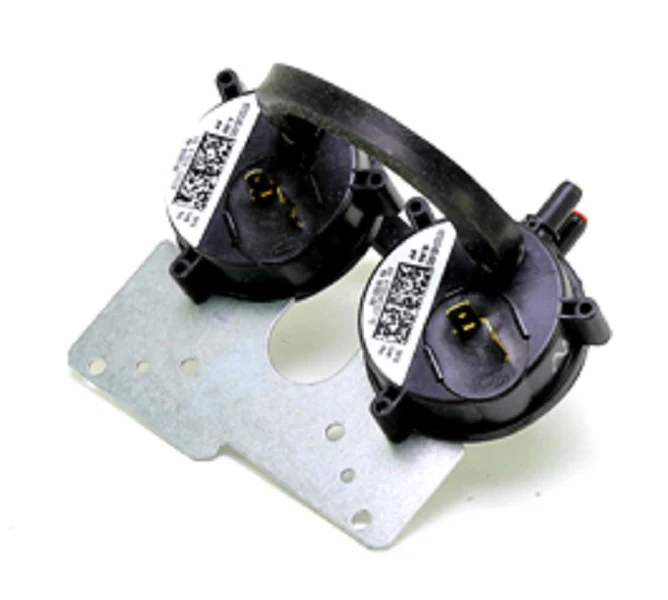

Lennox 24W50 Pressure Switch
The Lennox 24W50 Pressure Switch is a critical safety and performance component designed for two-stage gas furnaces. This dual-stage pressure switch features precise setpoints of .90" WC and 1.50" WC, ensuring the inducer motor maintains proper static pressure before the ignition sequence initiates. As a direct OEM furnace replacement part, it monitors the combustion air flow to prevent operation under hazardous venting conditions. In high-efficiency Lennox furnace troubleshooting, this switch is often the primary diagnostic focus when encountering 3-blink or 2-blink error codes related to pressure switch stuck open or closed. The robust diaphragm construction is engineered for high-cycle reliability in residential heating systems, maintaining calibrated trip points throughout extreme temperature fluctuations. Its low-pressure safety limit functionality protects the heat exchanger from improper fuel-to-air ratios, ensuring the HVAC inducer blower is operating within manufacturer specifications for both low-fire and high-fire stages.
- OEM Precision: Direct replacement ensures correct electrical termination and mounting alignment without field modifications.
- Dual-Stage Calibration: Pre-set at .90" and 1.50" WC to match specific Lennox blower performance curves.
- Fault Prevention: Actively monitors combustion air pressure to mitigate risks associated with blocked vents or inducer motor failure.
- Rapid Diagnostic: Standard spade connectors and clear labeling simplify HVAC service calls and resistance testing.
Common Installation and Compatibility Questions
What are the symptoms of a failing Lennox 24W50?
Contractors typically see the furnace failing to bridge the ignition gap, with the control board throwing codes for a pressure switch circuit remaining open. If the inducer runs but the glow plug doesn't energize, checking the .90/1.50 setpoints with a manometer is the next logical step.
Can I use a universal pressure switch to replace this Lennox part?
While universal switches exist, they often lack the dual-stage calibration required for 24W50 applications. Using anything other than the Lennox 24W50 OEM switch risks erratic cycling or safety lockouts during stage transitions.
Why is the 2-stage switch important for high-efficiency models?
Two-stage furnaces modify inducer speed to save energy. This switch ensures that at both low-fire (.90") and high-fire (1.50") speeds, there is sufficient static pressure to vent flue gases safely.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $55.01
-65%$55.01
$19.25Lennox 24W50 Pressure Switch
