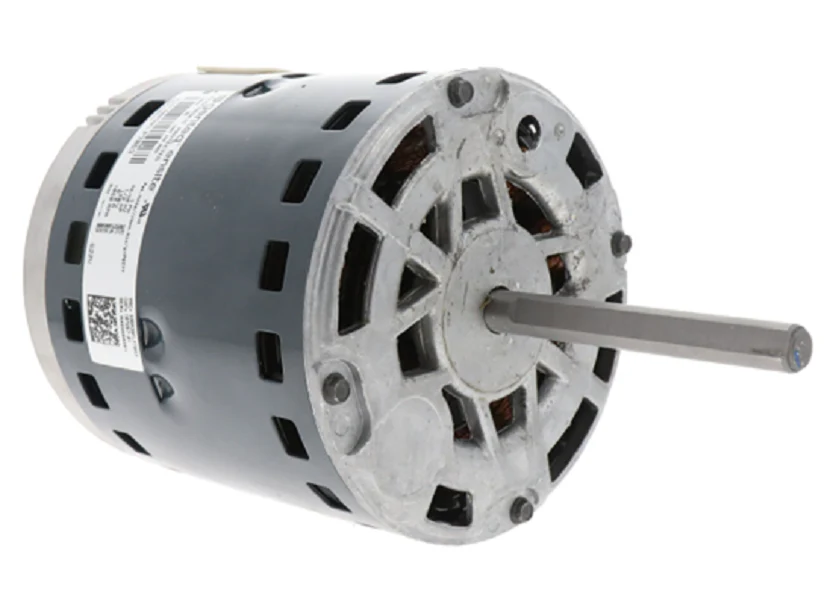

Lennox 23V71 Motor
The Lennox 23V71 is a factory-programmed Ensite ECM blower motor designed specifically for precision air delivery in residential Lennox HVAC systems. As a 1/2 HP, 115V single-phase constant torque motor, it serves as the direct Lennox 624623-01 replacement, superseding the legacy Endura Pro series. Engineered for efficiency, this NEMA 48 frame motor operates between 0–1100 RPM with five programmable speed taps, allowing technicians to fine-tune airflow based on static pressure requirements. The Lennox 23V71 Ensite motor features a durable ball bearing design and a CCWLE rotation, ensuring long-term reliability in horizontal mounting configurations using a standard belly band.
When performing a field replacement, this 1/2 HP 115V ECM motor offers a streamlined installation path. If you are replacing an older Endura Pro model, utilize the provided 107246-01 adapter harness to bridge the 9-pin connection. For existing Ensite installations, the unit provides plug-and-play compatibility. This OEM Lennox blower motor is critical for maintaining the SEER ratings and diagnostic integrity of the furnace or air handler, providing the silent operation and energy savings expected of high-efficiency ECM constant torque motors.
Key Benefits for Technicians:
- Direct OEM Match: Prevents programming errors and ensure compatibility with Lennox control boards.
- Integrated Electronics: Pre-programmed with 5 speed taps (0-1100 RPM) for immediate Lennox 23V71 installation.
- Versatile Application: Replaces 624623-01 and Endura Pro units with the included conversion kit.
- Industrial Build Quality: Features ball bearings and a 1/2" x 3.92" shaft for robust performance in high-cycle environments.
Common Technical Questions:
Does the Lennox 23V71 require a capacitor?
No, as an Ensite ECM motor, the electronics are integrated into the motor module; it does not utilize a traditional run capacitor.
Is the adapter harness mandatory?
The 107246-01 harness is only required if you are replacing an older Endura Pro motor with the new Ensite technology. Direct Ensite-to-Ensite swaps do not require it.
Can I use this in a 230V system?
No, this specific model is rated for 115V / 60Hz / 1 Phase power only. Applying 230V will damage the internal control module.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
