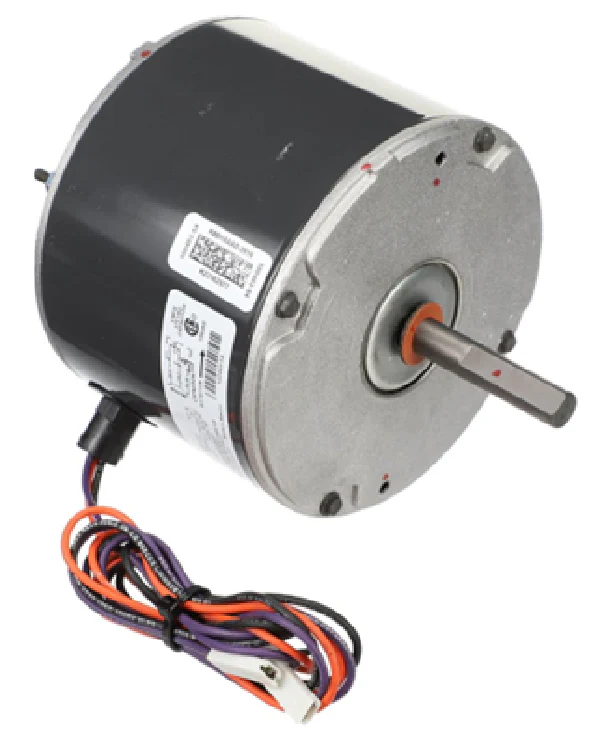

Lennox 23C07 Motor
The Lennox 23C07 is a mission-critical 1/8 HP condenser fan motor designed for high-static outdoor applications within Lennox residential and light commercial systems. Engineered for a 208-230V single-phase power supply, this induction motor maintains a constant 825 RPM fixed speed, ensuring the thermal transfer efficiency of the condenser coil remains within factory parameters. For a contractor in the field, this unit serves as a precision-matched Lennox outdoor fan motor replacement, eliminating the mounting and lead-length headaches often associated with "all-purpose" aftermarket motors.
When diagnosing a system with elevated head pressures or a tripped high-pressure switch, the 23C07 motor is the standard solution to restore proper CFM across the outdoor heat exchanger. This condenser fan motor features a continuous-duty design and refined bearing protection to withstand the abrasive environmental conditions of an outdoor unit. Proper integration of this 208-230V condenser motor ensures the compressor operates within its designed compression ratio, preventing premature winding failure and maintaining peak SEER ratings for the end user.
Key Benefits
- Direct OEM Fit: Ensures correct shaft diameter, frame size, and lead connections for faster installations.
- Low-RPM High-Torque: Optimized 825 RPM operation reduces acoustic footprint while maintaining necessary static pressure.
- Verified Compatibility: Specified as a direct 1/8 HP substitute for original factory-installed motors in Lennox equipment.
- Thermal Protection: Built-in internal overload protection prevents motor burnout during high-ambient operation.
- System Longevity: Maintains required refrigerant sub-cooling by stabilizing airflow across the condenser coil.
Common Questions
What does the Lennox 23C07 do?
It drives the fan blade in the outdoor condenser unit, pulling air through the coils to reject heat from the refrigerant gas back into the atmosphere.
How do I replace a condenser fan motor like the 23C07?
Technicians must disconnect power, verify the 5 MFD or 7.5 MFD (check nameplate) run capacitor is discharged, remove the fan shroud, and swap the motor using existing mounting hardware and matched wiring leads.
Why is my HVAC condenser fan not working?
Failure is often caused by a seized bearing, a failed run capacitor, or an open motor winding. If the motor is getting 230V but only humming or not turning, a replacement is typically required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
