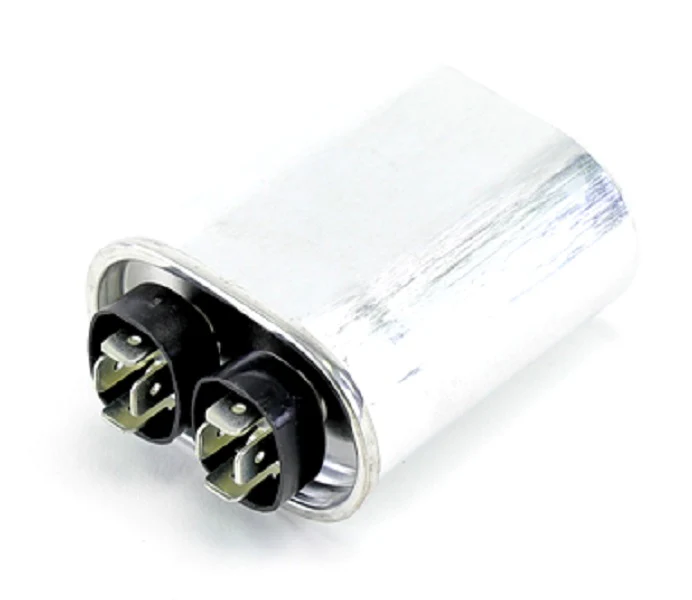

Lennox 22W80 Run Capacitor
The Lennox 22W80 is a high-performance 10 Microfarad (MFD) 370Vac Oval Run Capacitor engineered for continuous-duty operation in Lennox, Allied Air, and Ducane HVAC systems. This OEM replacement capacitor is critical for maintaining phase-shifted electrical power to blower and fan motors, ensuring optimal torque and operational efficiency. Rated for 50/60Hz applications and featuring a robust 370V rating, this component facilitates the reliable starting and running of induction motors in air handlers, condensers, and furnace units.
As a veteran tech knows, a degraded capacitor leads to excessive heat and potential motor winding failure. The Lennox 22W80 run capacitor features a compact oval metal casing for better heat dissipation and a standard 1/4-inch terminal configuration for direct field installation. With a tolerance of +/- 5% and an AFC of 10,000, this non-PCB capacitor meets high safety and performance standards for residential and light commercial equipment. It effectively replaces older part numbers including 52M33 and 100600-03, restoring system equilibrium and reducing energy consumption across the electrical load.
Key Benefits
- Genuine Lennox OEM part ensures exact mounting and terminal alignment for faster service calls.
- High-grade 10 MFD capacitance provides the necessary phase shift to keep fan motors running at specified RPMs.
- Durable 370V oval design fits tight electrical compartments in Lennox G24M and ML14XP units.
- Reduces motor operating temperatures, preventing premature failure of blower assemblies.
- Supports 50/60Hz cycles for versatile compatibility across various HVAC equipment generations.
Common Questions
Can I replace a 370V capacitor with a 440V capacitor?
Yes. While the MFD rating must match exactly (10 MFD), you can utilize a higher voltage rating like 440V if the physical dimensions of the oval casing allow for proper mounting. You cannot go lower than 370V.
What are the signs of a failing Lennox 22W80 capacitor?
Common indicators include a humming motor that fails to start, physical bulging or leaking of the capacitor casing, and intermittent blower operation. Testing with a multimeter should show a reading within 5% of 10 MFD.
Will this work in Ducane or Armstrong units?
Yes. Because Lennox is the parent company for Allied Air, this 22W80 capacitor is the direct replacement for many Armstrong and Ducane PSC motors requiring a 10 MFD 370V run capacitor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
