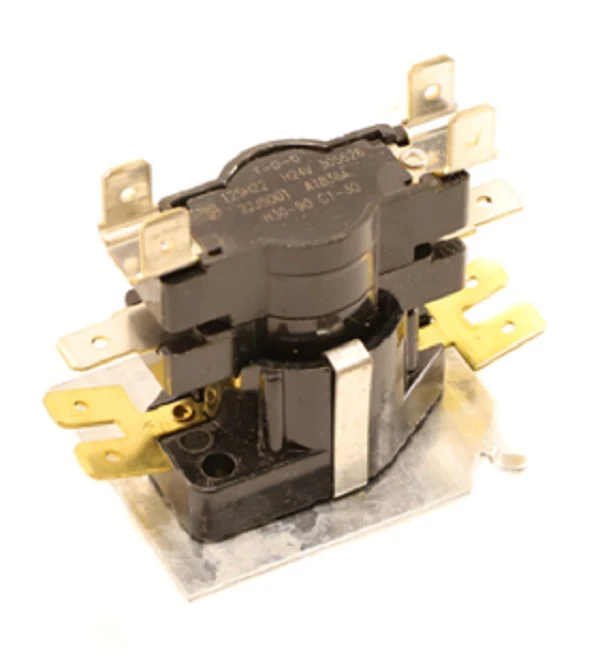

Lennox 22J50 Sequencer
The Lennox 22J50 Sequencer is a critical OEM replacement part designed to regulate the timing and staged activation of electric heating elements in residential and commercial air handlers. As a veteran-grade heat sequencer, this component prevents excessive inrush current by staggering the electrical load, ensuring the system’s resistive coils engage in a precise sequence. This staged thermal management protects the primary circuit breaker and stabilizes the blower motor’s operational cycles, maintaining consistent discharge air temperatures across HVAC heating stages.
Constructed for industrial longevity, the Lennox 22J50 features high-temperature resilience and terminal configurations optimized for Lennox electric furnaces and heat pump backup kits. Field technicians often spec this specific HVAC sequencer replacement to resolve issues where heating elements fail to shut down or fail to engage sequentially, which can lead to rapid cycling or compressor-related overheating. Whether you are performing routine maintenance or a mid-season repair, utilizing a genuine 22J50 sequencer ensures that the system maintains its original factory specifications and efficiency ratings without compromising the integrity of the control board or internal wiring harnesses.
Key Benefits for HVAC Professionals:- Controlled Heat Staging: Effectively manages the timing of multiple heating elements to prevent electrical grid overload and nuisance tripping of breakers.
- Broad Compatibility: Engineered as a direct-fit Lennox 22J50 replacement for AHSA and ECH series air handlers, facilitating rapid field installation.
- Robust Contact Switching: Features durable terminal points designed to handle the high-amperage demands of resistive heating coils during extreme cold-start cycles.
- System Reliability: Eliminates rapid cycling and promotes uniform heat distribution by ensuring correct delay-on and delay-off intervals.
- What are the symptoms of a failing 22J50 sequencer? Common indicators include heating elements staying energized after the thermostat is satisfied or some heat stages failing to activate, resulting in lukewarm airflow.
- Is this sequencer compatible with generic air handlers? While optimized for Lennox systems, it can replace sequencers with matching timing specifications and terminal counts; however, verifying the wiring diagram is mandatory.
- Does reversing the terminals affect performance? Yes, proper lead placement on the heater and blower terminals is essential for maintaining the correct timing sequence for fans and coils.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
