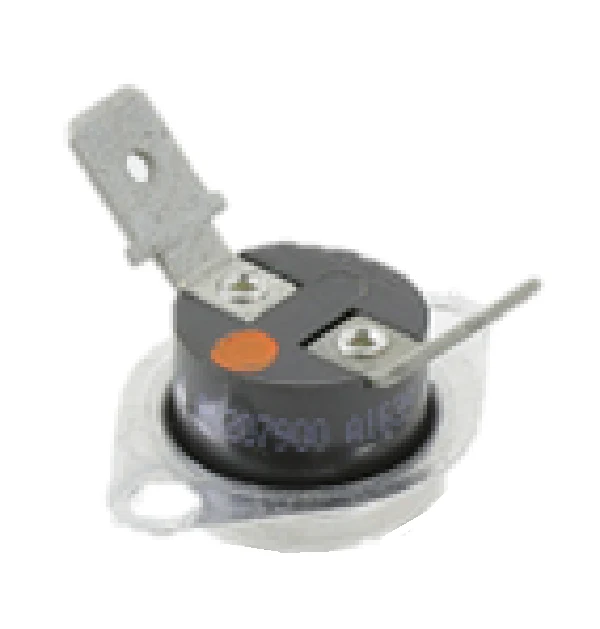

Lennox 20J99 Limit Switch
The Lennox 20J99 Limit Switch is a critical safety component designed for precise thermal regulation within residential gas furnaces and air handlers. Engineered as a normally closed thermal protector, this switch features an automatic reset mechanism calibrated for a 130-160F temperature range. When the heat exchanger area exceeds the 160°F threshold, the internal bimetal disc triggers the circuit to open, immediately interrupting the gas valve or blower motor circuit to prevent system overheating. As a genuine OEM Lennox replacement part, the 20J99 ensures exact mechanical fitment and electrical compatibility, maintaining the UL listing integrity of the equipment. For technicians performing diagnostics on Lennox furnace flame rollout or high-limit trips, replacing a drifted or fouled switch with this factory-spec L0160-30 limit control is essential for restoring reliable furnace performance and ensuring safe cycling during peak heating demands.
Key Benefits for Technicians:- Precision Thermal Calibration: Factory-set 160°F cutout with a 30°F differential ensures optimal air temperature monitoring and prevents nuisance tripping.
- Automatic Reset Functionality: Closes the circuit automatically once temperatures drop back to 130°F, reducing unnecessary service calls for manual resets.
- Direct OEM Replacement: Matches original equipment specifications for Lennox G24, G26, and G32 series furnaces, ensuring terminal alignment and easy installation.
- Enhanced System Safety: Provides a reliable fail-safe against restricted airflow, dirty filters, or blower motor failures that cause heat exchanger overheating.
What causes a Lennox 20J99 limit switch to trip repeatedly?
Repeated tripping typically indicates restricted airflow due to a clogged air filter, an undersized duct system, or a failing indoor blower motor. If the switch remains open despite normal airflow, the internal bimetal disc may have drifted out of calibration.
Is the 20J99 compatible with other furnace brands?
While designed primarily for Lennox, Armstrong, and Ducane equipment, it can be used in other applications requiring a 160 degree fahrenheit limit control with identical mounting footprints and electrical ratings. Always verify the temperature stamping on the old part before substituting.
How do I test the 20J99 for failure?
Using a multimeter set to continuity, check the terminals while the switch is cool. A functioning 20J99 limit switch should show continuity (0 ohms). If the circuit is open at room temperature, the switch is defective and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $19.46
-65%$19.46
$6.81Lennox 20J99 Limit Switch
The Lennox 20J99 Limit Switch is a critical safety component designed for precise thermal regulation within residential gas furnaces and air handlers. Engineered as a normally closed thermal protector, this switch features an automatic reset mechanism calibrated for a 130-160F temperature range. When the heat exchanger area exceeds the 160°F threshold, the internal bimetal disc triggers the circuit to open, immediately interrupting the gas valve or blower motor circuit to prevent system overheating. As a genuine OEM Lennox replacement part, the 20J99 ensures exact mechanical fitment and electrical compatibility, maintaining the UL listing integrity of the equipment. For technicians performing diagnostics on Lennox furnace flame rollout or high-limit trips, replacing a drifted or fouled switch with this factory-spec L0160-30 limit control is essential for restoring reliable furnace performance and ensuring safe cycling during peak heating demands.
Key Benefits for Technicians:- Precision Thermal Calibration: Factory-set 160°F cutout with a 30°F differential ensures optimal air temperature monitoring and prevents nuisance tripping.
- Automatic Reset Functionality: Closes the circuit automatically once temperatures drop back to 130°F, reducing unnecessary service calls for manual resets.
- Direct OEM Replacement: Matches original equipment specifications for Lennox G24, G26, and G32 series furnaces, ensuring terminal alignment and easy installation.
- Enhanced System Safety: Provides a reliable fail-safe against restricted airflow, dirty filters, or blower motor failures that cause heat exchanger overheating.
What causes a Lennox 20J99 limit switch to trip repeatedly?
Repeated tripping typically indicates restricted airflow due to a clogged air filter, an undersized duct system, or a failing indoor blower motor. If the switch remains open despite normal airflow, the internal bimetal disc may have drifted out of calibration.
Is the 20J99 compatible with other furnace brands?
While designed primarily for Lennox, Armstrong, and Ducane equipment, it can be used in other applications requiring a 160 degree fahrenheit limit control with identical mounting footprints and electrical ratings. Always verify the temperature stamping on the old part before substituting.
How do I test the 20J99 for failure?
Using a multimeter set to continuity, check the terminals while the switch is cool. A functioning 20J99 limit switch should show continuity (0 ohms). If the circuit is open at room temperature, the switch is defective and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
