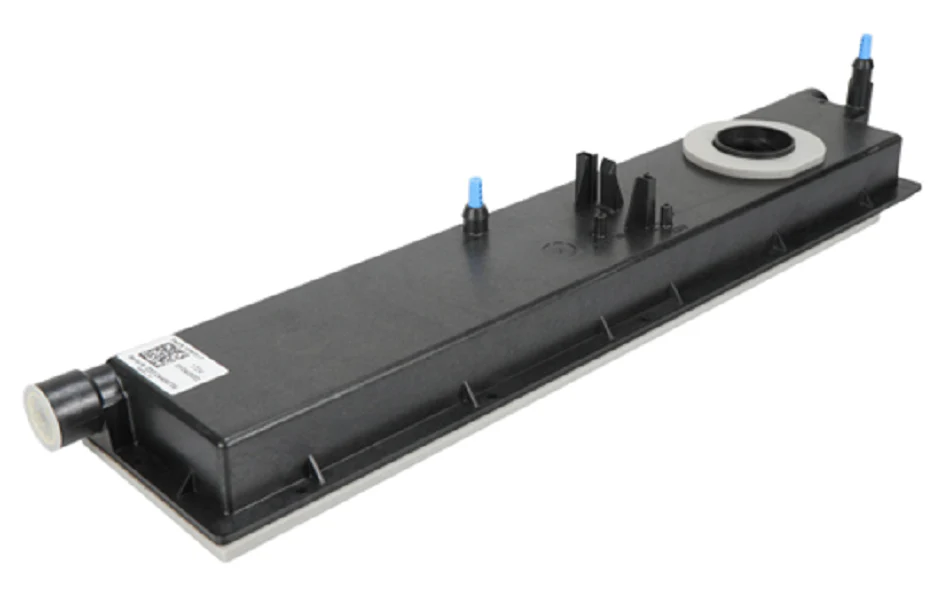

Lennox 19V60 Collector Box
The Lennox 19V60 Collector Box (also identified by part number 102552-11 and model 619598-59) is a critical OEM replacement part designed for high-efficiency condensing furnaces, specifically the Lennox ML193 series. As a veteran technician knows, the cold end header box is responsible for managing the acidic condensate produced during the secondary heat exchange process. This collector box assembly ensures that moisture is properly channeled into the condensate trap, preventing backflow that can lead to pressure switch trips or internal corrosion of the furnace cabinet. Durable construction and precise flange alignment are maintained to ensure a gas-tight seal against the heat exchanger, preserving the induced draft integrity required for safe combustion.
When diagnosing furnace water leaks or erratic pressure switch codes, inspecting the Lennox 19V60 for hairline cracks or terminal clogging is a standard step. This kit includes the necessary components for a complete cold end collector box overhaul, including the 103429-01 trap assembly, vinyl caps, and various drain hoses and plugs. Proper installation of this furnace collector box is essential for maintaining the AFUE rating of the unit and ensuring the condensate management system operates without restriction during high-demand heating cycles.
- Direct OEM Compatibility: Specifically engineered for a precise fit on Lennox ML193 and related high-efficiency models.
- Comprehensive Kit: Includes the condensate trap, drain hoses, and 1/2-inch external drain plug for a full system restoration.
- Enhanced Moisture Management: Facilitates efficient drainage to prevent water accumulation near the secondary heat exchanger.
- Induced Draft Reliability: Helps maintain consistent vacuum pressure, reducing nuisance pressure switch faults.
- High-Grade Internal Sealing: Designed to withstand the corrosive nature of furnace condensate over long-term operation.
Common Questions
Why is my furnace leaking water from the collector box area?
Leaks typically occur due to cracks in the plastic housing or a failure in the collector box gasket seal. Replacing the assembly with a genuine Lennox 19V60 ensures the drainage path is clear and the seal is restored to factory specifications.
Will a cracked collector box cause my furnace to stop heating?
Yes. If the collector box is cracked or the drain is plugged, it can disrupt the vacuum required to close the pressure switch, leading to a safety lockout and a "no heat" condition.
Is the condensate trap included with the 19V60 kit?
Yes, this cold end header box kit includes the 103429-01 condensate trap along with the necessary clamps and hoses for a standard field replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
