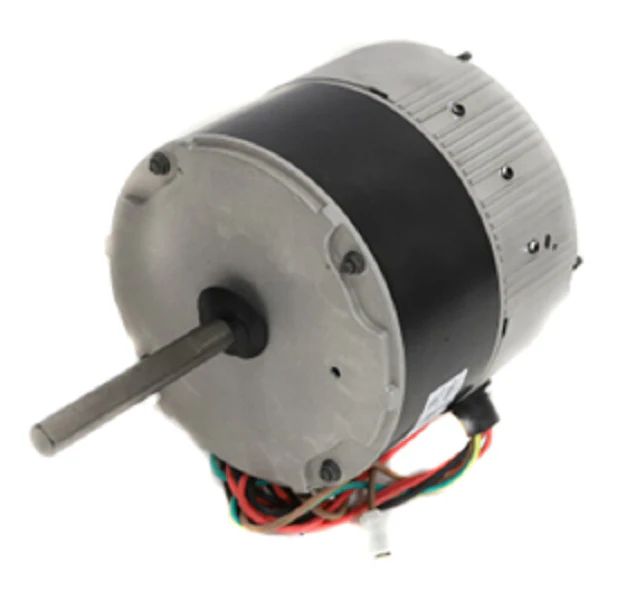

Lennox 19U96 Motor
Upgrade or repair your Lennox condenser unit with the Lennox 19U96 ECM Condenser Fan Motor, a high-performance 1/3 HP OEM replacement motor engineered for precision airflow and variable-speed efficiency. This 208-230V single-phase motor operates at a nominal 1050 RPM and is a direct drop-in for 103687-05, ensuring seamless integration with Lennox SL18XC1, XC21, and XP21 series high-efficiency units. Featuring a durable NEMA 48 frame and ball bearing construction, this electronically commutated motor (ECM) is designed for vertical mounting and continuous air-over cooling. The 1/2-inch diameter by 4-inch shaft provides the necessary torque for heavy-duty fan blades, maintaining optimal head pressure even in extreme ambient temperatures. For technicians in the field, the Lennox 19U96 offers the reliability of a genuine Lennox replacement part, minimizing call-backs by restoring factory-spec performance to advanced HVAC systems.
Key Benefits- OEM Compatibility: Exact replacement for Lennox part 19U96 and 103687-05, fitting various SL18, SL28, XC, and XP models.
- ECM Efficiency: Provides variable-speed capabilities (300-1200 RPM range) to match system demand and reduce energy consumption.
- Robust Construction: Built with a 48-frame housing and high-grade ball bearings for extended service life in demanding outdoor environments.
- Technical Precision: Rated for 208-230V, 1PH, 50/60Hz, with a 2.6 Amp draw for stable electrical performance.
- Easy Installation: Features standard stud mounting and a 1/2" x 4" shaft for quick connection to existing fan blades.
Is the Lennox 19U96 a direct replacement for my older motor?
Yes, this is the current OEM replacement for catalog number 19U96 and part number 103687-05. It is specifically designed to fit high-SEER Lennox heat pumps and air conditioners that require an ECM condenser motor.
Do I need to replace the capacitor when installing this motor?
As an ECM (Electronically Commutated Motor), this unit features integrated electronics to manage start and run cycles. Unlike standard PSC motors, it does not utilize a traditional external run capacitor.
What are the rotation and mounting requirements?
This motor is designed for vertical mounting (shaft up or shaft down depending on the cabinet) and features CCW (Counter-Clockwise) rotation as viewed from the lead end. Always verify your specific model's rotation before final installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
