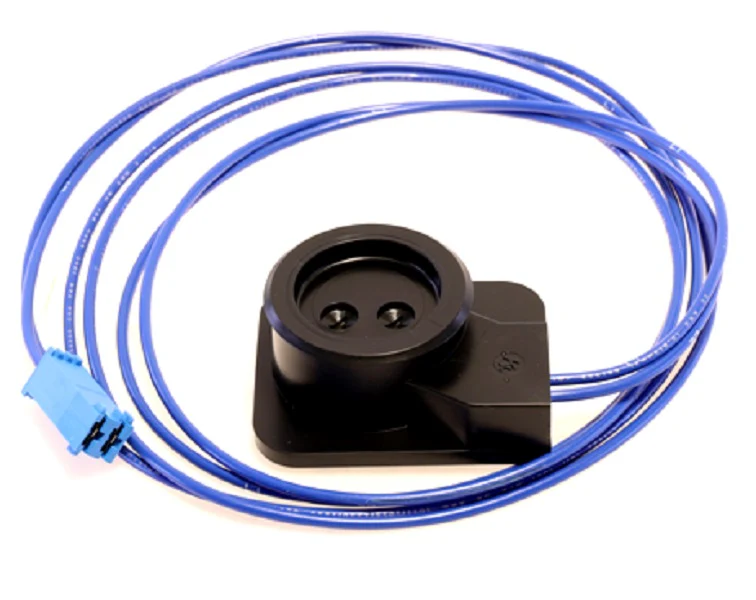

Lennox 17H61 Plug
The Lennox 17H61 molded plug assembly is a critical electrical interface for maintaining secure power connectivity to hermetic compressors. Engineered for compatibility with specific Lennox HVAC units and various Copeland compressor models, this 3-wire molded plug ensures a moisture-resistant, vibration-proof connection at the terminal pin block. The heavy-duty molded connector head is designed to withstand high-temperature environments within the condenser cabinet, preventing arcing or terminal failure caused by loose conventional spade connectors. When replacing a failed compressor or addressing burnt wiring, utilizing a direct-fit HVAC compressor power cord like the 17H61 ensures the electrical load is distributed according to factory specifications, maintaining the integrity of the Lennox replacement parts ecosystem and preventing premature component wear.
Key Benefits for Technicians:- Internal Terminal Protection: The molded design encapsulates the terminals to prevent oxidation and moisture ingress in high-humidity outdoor environments.
- Vibration Resistance: Unlike standard field-crimped terminals, this heavy-duty compressor plug maintains a consistent grip on pins during long run cycles.
- Direct Fit Compatibility: Specifically indexed for Lennox 17H61 requirements, reducing install time and eliminating the need for wire splicing at the compressor head.
- High-Gauge Copper Leads: Constructed with commercial-grade wire to handle the high Current (FLA/LRA) demands of residential and light commercial cooling systems.
Does this plug fit all Copeland scroll compressors?
While designed for specific Copeland and Lennox applications, technicians should verify the pin configuration and terminal spacing, as certain high-capacity scrolls require specific molded head dimensions.
Can I use this for both 208V and 230V systems?
Yes, the Lennox 17H61 is rated for standard residential and commercial voltages, provided the compressor's amperage draw does not exceed the wire gauge rating.
How do I ensure a proper seal during installation?
Ensure the compressor pins are clean and free of carbon buildup. The plug should be seated firmly until the molded gasket makes full contact with the terminal housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
