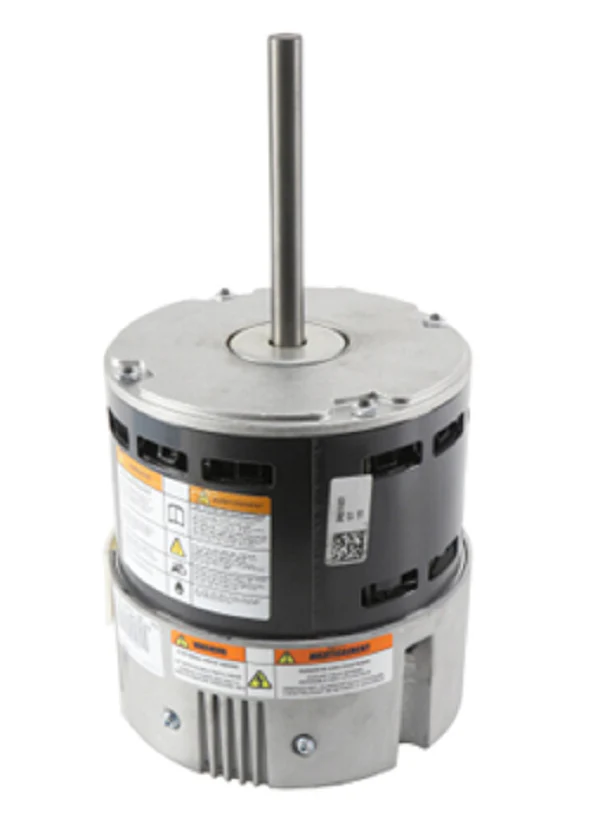

Lennox 17G96 Motor
The Lennox 17G96 Blower Motor is a high-efficiency ECM programmed assembly designed for precise airflow control in residential and commercial 115V applications. Operating at 1/2 HP with a variable speed range of 500-1200 RPM, this 48-frame motor provides consistent torque to maintain system static pressure and optimize HVAC air circulation. Built for horizontal mounting via belly band, it features a 1/2" x 4.5" shaft with CCW rotation (counter-clockwise) and robust ball bearings for reduced friction and extended service life in high-demand environments. As a direct OEM replacement motor, the 17G96 integrates seamlessly with the original system controls to prevent blower communication faults and ensure efficient direct drive blower operation. Whether you are addressing reduced airflow or 115V electrical failures, this programmed motor delivers the technical reliability required for critical furnace and air handler repairs.
Key Benefits- Variable Speed Precision: Programmed electronics allow for 500-1200 RPM adjustments, improving humidity control and reducing operational noise.
- Durable Construction: Features shielded ball bearings and a NEMA 48 frame housing for a long-wearing mechanical profile.
- Thermal Overload Protection: Equipped with an internal thermal protector to prevent winding damage during excessive load conditions.
- Direct OEM Compatibility: Specifically programmed for Lennox units (including EL280 series) to eliminate the need for field programming or board re-calibration.
Can I use a standard PSC motor to replace this 17G96 ECM?
No. This is a programmed ECM blower motor. Replacing it with a permanent split capacitor (PSC) motor would require significant wiring changes and a different control board, as the system relies on the variable speed DC signal for proper operation.
What does it mean if my blower is "chugging" or spinning slowly?
This usually indicates a failing ECM control module or a communication fault (E201). Before replacing the entire 17G96 assembly, technicians should check for 5.5VDC signal at the communication terminals and ensure the motor turns freely by hand to rule out mechanical seizure.
Does this motor include the mounting bracket?
The 17G96 is designed for belly band mounting. You should reuse the existing belly band from the original Lennox blower assembly, ensuring the motor is centered correctly before tightening.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
