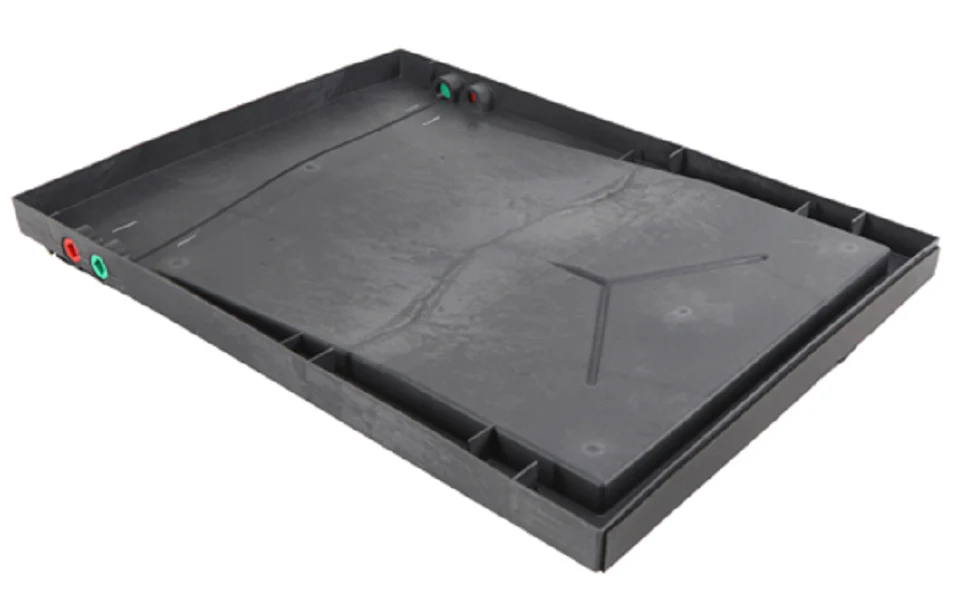

Lennox 17F03 Drain Pan
As an experienced HVAC technician, you know that managing condensate in horizontal air handler configurations is critical to preventing structural water damage. The Lennox 17F03 Horizontal Drain Pan is a purpose-built condensate management solution designed specifically for 3-ton to 4-ton Lennox units. This HVAC drain pan replacement is constructed from heavy-gauge galvanized steel, offering superior corrosion resistance compared to plastic alternatives that can crack or warp over time. When performing a horizontal air handler installation, utilizing the 17F03 ensures a precise fit for the 620622-04 assembly kit, maintaining the necessary pitch for effective moisture discharge. Integrating this secondary drain pan into your system provides the high-tensile strength required for industrial and residential applications, effectively bridging the gap between performance and long-term reliability. Ensure you utilize the correct 1-inch NPT fittings and traps to maintain the atmospheric seal required for high-static pressure environments.
Key Benefits- Heavy-Duty Construction: High-tensile galvanized steel prevents sagging and resists the chemical degradation often found in standing condensate.
- System Compatibility: Engineered specifically as a Lennox replacement part for 3-4 ton horizontal air discharge applications, ensuring exact alignment with factory drain ports.
- Leak Prevention: Precision-rolled edges and welded seams provide a robust secondary containment barrier to protect building interiors from overflow.
- Optimized Drainage: The low-profile horizontal design allows for seamless AC unit drainage in tight crawlspaces or attic clearances where vertical height is restricted.
What tonnage is the Lennox 17F03 compatible with?
This drain pan is specifically designed for 3 to 4-ton horizontal air handlers and furnace coils, fitting the 620622-04 assembly specifications.
Can I use this pan for upflow or downflow installations?
No, the 17F03 is a specialized horizontal drain pan. Vertical installations require a different internal coil pan configuration to properly capture shedding condensate.
Does this kit include the condensate overflow switch?
This part number refers to the pan assembly itself. For full code compliance in most jurisdictions, we recommend installing a secondary float switch to the pan’s rim or discharge line during the retrofit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $155.06
-65%$155.06
$54.27Lennox 17F03 Drain Pan
