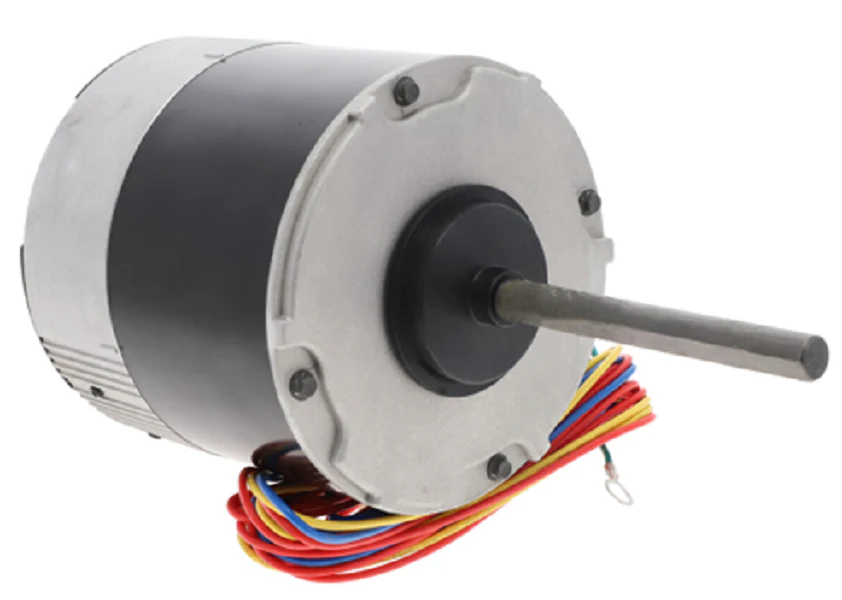

Lennox 16V47 Motor
As a field technician, you know that a failed condenser motor during peak season isn't just an inconvenience—it’s a service emergency. The Lennox 16V47 Motor is a genuine OEM replacement condenser fan motor designed specifically for high-efficiency HVAC units. This 1/3 HP ECM motor operates on a 208-230V single-phase circuit, delivering a variable speed range from 250 to 1250 RPM. Engineered with ball bearing construction and a 48-frame design, this electronically commutated motor provides superior thermal management and reduced acoustic signatures compared to traditional PSC alternatives. Its CCW lead end rotation and vertical mounting capability ensure a precise fit for specific Lennox, Armstrong, and Ducane rooftop units or split systems. When replacing this component, verifying the belly band mounting and 3.72-inch shaft length is essential to maintain original factory airflow specifications and prevent premature compressor wear.
- OEM Precision: Direct 16V47 replacement motor ensures exact electrical matching and physical alignment without the need for field modifications.
- Variable Speed Control: The variable speed ECM technology allows for modulated airflow, optimizing head pressure and increasing overall system SEER ratings.
- Rugged Build: Features dual ball bearings and a NEMA 48 frame to withstand high-ambient outdoor temperatures and continuous duty cycles.
- Drop-in Compatibility: Replaces legacy part numbers 104020-01 and 104020-02, maintaining the specific CCWLE rotation required for factory fan blades.
Common Questions
Is the Lennox 16V47 a direct replacement for 104020-02?
Yes, the 16V47 is the current manufacturer-designated replacement for part numbers 104020-01 and 104020-02. It maintains the same 1/3 HP rating and 208-230V electrical requirements.
Can I use a standard PSC motor instead of this ECM?
We do not recommend it. This unit utilizes ECM technology controlled by the system's logic board. Switching to a standard motor will result in communication errors and significantly reduced efficiency.
Does the rotation matter for this condenser motor?
Crucially. This motor is CCW rotation from the lead end. Using a motor with the incorrect rotation will cause the fan to move air in the wrong direction, leading to rapid compressor overheating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
