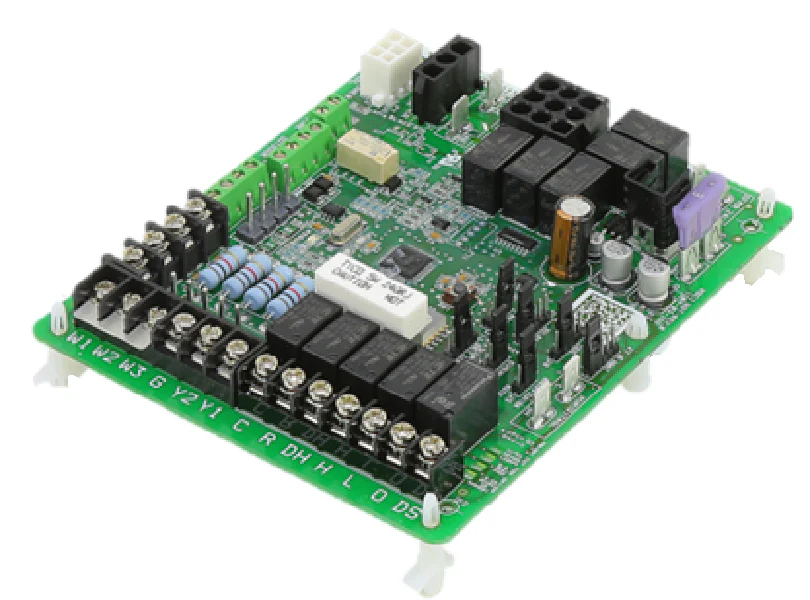

Lennox 16B27 Control Kit
The Lennox 16B27 Control Kit (Catalog #16B27, Model 605341-12) is a critical OEM replacement part designed for high-performance Lennox iComfort air handler systems. This iComfort control board kit acts as the central intelligence for your air handler, managing variable speed blower motors and facilitating digital communication between the thermostat and outdoor unit. As an authentic HVAC control board replacement, it ensures proper staging and airflow diagnostics, maintaining the precise operational parameters required for high-efficiency Lennox equipment. Whether you are troubleshooting error codes or performing a direct swap on a malfunctioning unit, this Lennox circuit board provides the firmware stability and terminal connectivity necessary for HVAC system communication. It is essential for technicians to confirm the cabinet size and serial compatibility of the CBX32MV or CBX40UHV series units before installation to ensure seamless integration with existing Lennox iComfort Wi-Fi thermostats.
Key Benefits for Technicians:- Direct OEM Integration: The Lennox 16B27 ensures full compatibility with iComfort-enabled air handlers, eliminating the logic errors common with generic universal boards.
- Advanced Diagnostics: Equipped with onboard LED status indicators to streamline troubleshooting and speed up service calls.
- Optimized Airflow Management: Precisely controls pulse width modulation (PWM) signals to ECM blower motors for maximum dehumidification and comfort staging.
- Plug-and-Play Connectors: Utilizes factory-standard wiring harnesses for a secure, terminal-matched installation that reduces field wiring errors.
What air handler models are compatible with the 16B27 kit?
This Lennox 605341-12 kit is primarily utilized in Lennox CBX32MV and CBX40UHV series air handlers that require the iComfort communicating protocol for full functionality.
Does this board support non-communicating 24V thermostats?
While designed for iComfort digital communication, these boards typically feature legacy terminals; however, a Lennox communicating thermostat is required to access advanced system configuration and performance data.
How do I resolve communication errors after installation?
Ensure the Lennox 16B27 Control Kit is addressing properly by cycling system power and checking the RSBus wiring (R, C, +, -) for any shorts or reversed polarity.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
