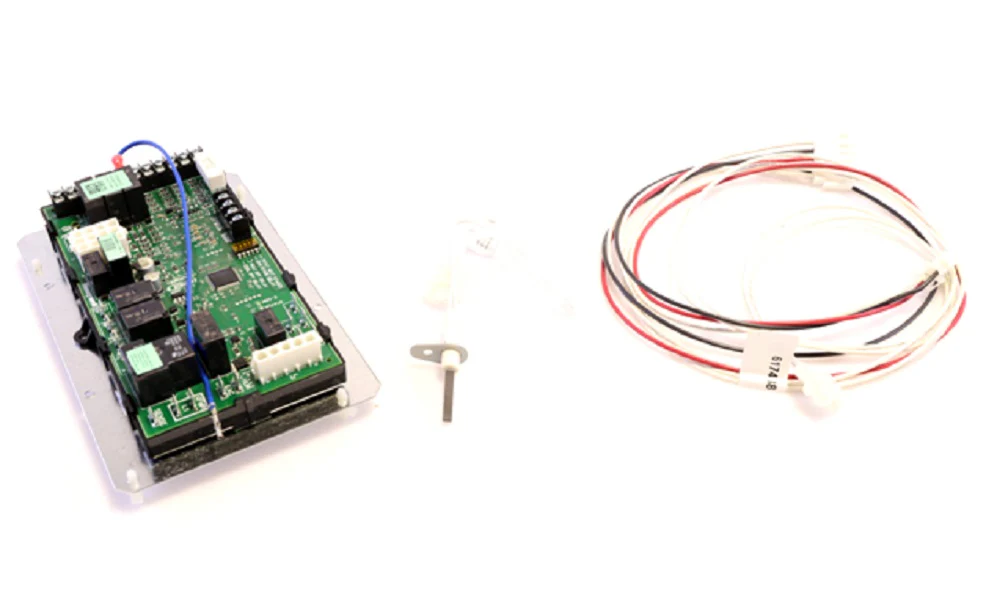

Lennox 16A07 Ignition Control Kit
As an HVAC professional, you know that a failed ignition sequence is one of the most common service calls during peak heating season. The Lennox 16A07 Ignition Control Kit (also identified as the 614148-04 replacement kit) is the specified OEM solution for restoring high-performance operation to Lennox G32 and GHR32 gas furnaces. This technical kit is engineered to manage the critical timing of the combustion air inducer, Hot Surface Ignitor (HSI), and gas valve, ensuring a safe and reliable flame rectification process. Operating on a standard 24 VAC furnace control circuit, the board utilizes advanced microprocessors to monitor system safeties and provide diagnostic feedback through on-board LEDs. Whether dealing with a variable speed blower motor or a standard two-stage furnace ignition, this kit provides the precise electrical oversight needed to prevent hard lockouts and nuisance trips caused by fluctuating line voltage or flame sensor degradation. Each kit includes the necessary wiring harnesses and conversion hardware to streamline the field installation process.
Key Benefits for Technicians:- Direct OEM Compatibility: Specifically designed to replace aging ignition control modules in Lennox G32 series units without field modifications.
- Enhanced Diagnostics: Integrated diagnostic LED codes allow for rapid troubleshooting of pressure switch, limit, and rollout circuit faults.
- Reliable Flame Sensing: Optimized flame rectification circuitry ensures stable operation and prevents unnecessary shutdown cycles.
- Robust Construction: Precision relays and moisture-resistant coatings protect the circuit board from the harsh thermal environments of a furnace vestibule.
- What does an E125 or E110 error code indicate on this board? An E125 code typically signifies an internal memory or self-check failure, while E110 points to low line voltage that may prevent the Lennox 16A07 from energizing the ignitor.
- Is the 16A07 a direct drop-in for the 614148-04? Yes, the 16A07 is the current service kit number for the original 614148-04 control found in G32 variable speed furnaces.
- Can I use this board for a single-stage furnace? No, this ignition control kit is specifically tuned for the sequencing requirements of Lennox variable speed and two-stage platforms.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
