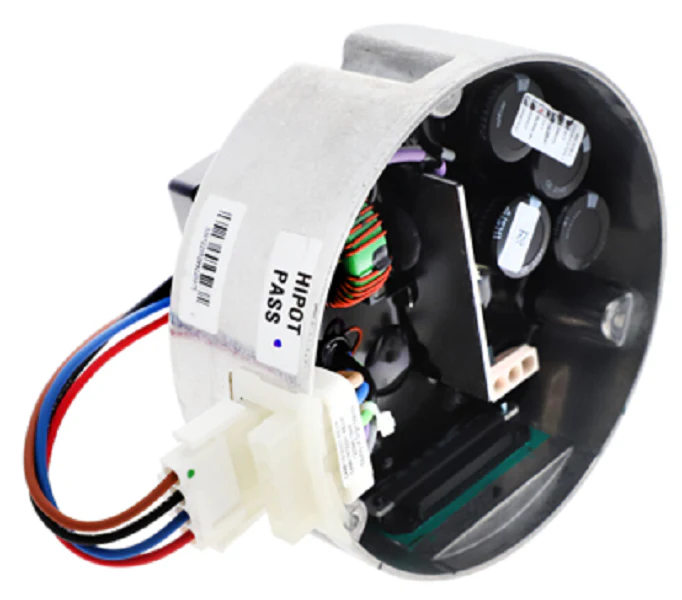

Lennox 15T69 Motor Module
As a seasoned technician, you know that a failing blower can bring an entire system to a halt. The Lennox 15T69 Motor Module is the direct OEM replacement engineered specifically for Lennox CBX25-24 and BCE3M24 air handlers. This ECM motor control module is a high-performance variable speed motor controller designed to interface seamlessly with your Genteq 3.0 blower motor. It provides the precision communication required to translate 24V thermostat signals into exact CFM delivery, ensuring the airflow meets the strict static pressure demands of your installation. Unlike generic aftermarket alternatives, this Lennox replacement motor module preserves the factory-tuned performance of the unit, preventing the hunting or surging often seen with mismatched controls. When you are out in the field, use this genuine Lennox HVAC part to ensure the internal capacitors and bridge rectifiers handle the load without premature failure, keeping your client’s system running at peak efficiency.
Key Benefits- Precise Airflow Control: Facilitates exact variable speed modulation to maintain consistent comfort and system balance.
- OEM Compatibility: Programmed Specifically for Lennox 102993-05 applications, eliminating the need for complex field programming.
- Rugged Electrical Design: Built to withstand the high-demand cycling of residential and commercial HVAC environments.
- Diagnostic Reliability: Simplifies troubleshooting by maintaining standard OEM pinout configurations for easy testing with a multimeter.
How do I verify if the 15T69 module is faulty or the motor windings are shorted?
Before replacing the module, perform a phase-to-phase resistance check on the motor. Use an ohmmeter to verify that the three motor connector pins show approximately equal resistance and that there is no continuity (>100k ohms) to the motor frame. If the motor passes these tests but does not respond to a 24V call, the module is the likely point of failure.
Can I install this module without removing the entire blower assembly?
Yes. In most Lennox air handlers, you only need to disconnect the wiring harnesses and remove the two hex-head mounting bolts to slide the module off the motor. Ensure you wait at least five minutes after disconnecting power for the capacitors to discharge.
Does this module require special tools for installation?
No, standard technician hand tools will suffice. Ensure you torque the mounting bolts to approximately 22 inch-pounds to maintain a proper seal and secure electrical contact with the 3-pin internal motor plug.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
