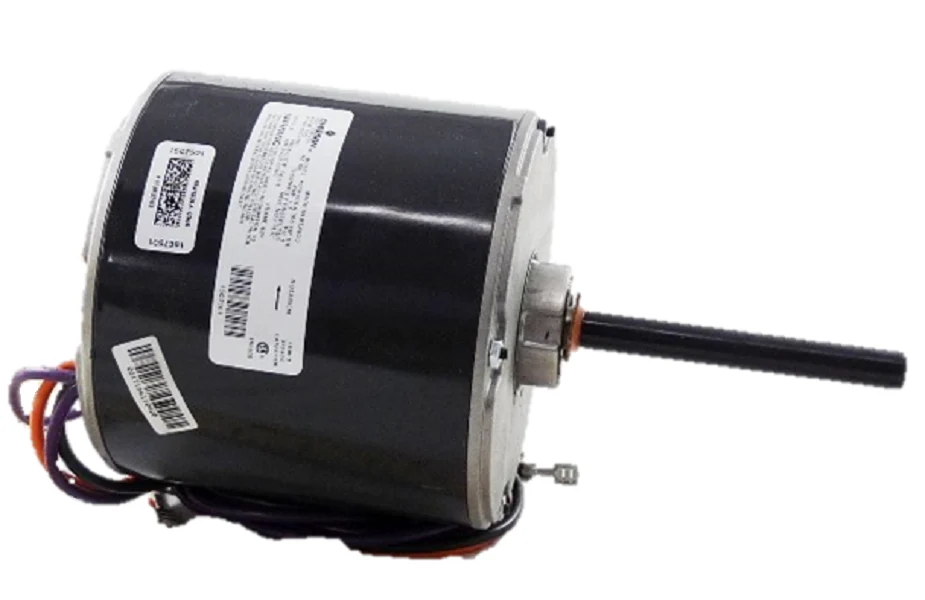

Lennox 15C75 Motor
The Lennox 15C75 Condenser Fan Motor is a heavy-duty OEM replacement motor designed for high-performance cooling applications. Featuring a 1/4 HP output and operating at a precise 825 RPM, this 48Y frame motor is engineered for vertical mounting in residential and light commercial condenser units. As a PSC motor (Permanent Split Capacitor), it requires a 10 MFD 370 VAC capacitor to ensure proper starting torque and thermal stability during continuous operation.
This single-phase HVAC motor operates on 208/230V at 60 Hz and features a CCWLE (Counter Clockwise Lead End) rotation. Built with a durable 1/2-inch diameter shaft and sleeve bearings, the Lennox 15C75 (also identified as 15C7501) provides a direct fit for units previously utilizing part numbers 90A48 and 76C94. To maintain system integrity and prevent premature winding failure, technicians should verify the fan blade balance and replace the run capacitor during installation.
- OEM Compatibility: Exact replacement for Lennox, Armstrong, and Ducane part numbers 15C7501 and 90A4801.
- Efficient Airflow: Low-speed 825 RPM design optimized for quiet and effective heat dissipation in outdoor coils.
- Thermal Protection: Built-in internal overload protection to prevent motor burnout under high ambient temperatures.
- Standardized Frame: Industry-standard 48 frame diameter with a single-side flat shaft for secure fan blade attachment.
Common Questions Regarding the Lennox 15C75
What capacitor is required for the 15C75 motor?
This motor requires a 10 MFD / 370 VAC run capacitor. Using an incorrect or weakened capacitor will lead to overheating and potential motor failure.
Is this a multi-speed motor?
No, the 15C75 is a single-speed induction motor designed to run at a constant 825 RPM for optimal condenser fan performance.
Which direction does this motor rotate?
The rotation is Counter Clockwise Lead End (CCWLE). Always confirm the rotation of your existing fan blade before installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
