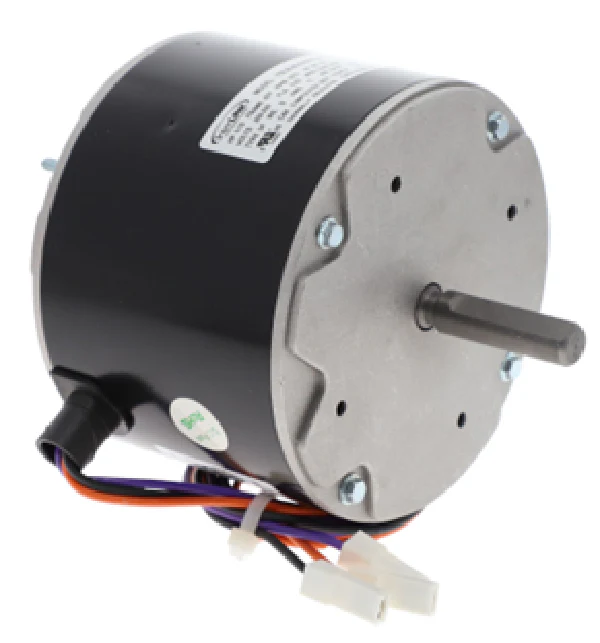

Lennox 13Y95 Fan Motor
The Lennox 13Y95 Fan Motor is a high-performance direct drive condenser fan motor designed for precision airflow in residential and commercial HVAC systems. This OEM Lennox replacement motor (Part #100483-45) features a 1/10 HP output and operates at a synchronous 1075 RPM. Engineering specifications include a 208-230V single-phase electrical requirement at 60 Hz, pulling approximately 0.7 Amps. Built on a 42Y NEMA frame with all-angle ball bearings, it ensures reliable heat dissipation even in demanding outdoor environments. The motor utilizes a Permanent Split Capacitor (PSC) design and includes Class B insulation with an automatic reset thermal protector to manage internal temperatures during continuous duty. For contractors performing a field swap, verify the CW shaft-end rotation and 1/2-inch shaft diameter to ensure compatibility with existing fan blades. To maintain peak efficiency and prevent premature winding failure, it is standard practice to replace the run capacitor during installation.
Key Benefits for Technicians:- Genuine OEM Reliability: Exact Lennox 13Y95 drop-in replacement ensures mounting alignment and electrical matching without field modifications.
- Durable Construction: High-grade ball bearing system supports versatile mounting positions and extends service life in high-ambient conditions.
- Optimized Performance: The 1075 RPM 1/10 HP motor profile is calibrated for specific Lennox and Allied outdoor units to maintain factory SEER ratings.
- Thermal Protection: Integrated automatic reset overload prevents stator damage during voltage fluctuations or airflow restrictions.
What are the primary specs for the Lennox 13Y95?
This is a 1/10 HP condenser fan motor, 208-230V, 1075 RPM, 0.7 Amps, with a 42Y frame and CW rotation from the shaft end.
Is the capacitor included with the 13Y95 motor?
While the motor is a standalone component, it requires a PSC run capacitor (typically 5 MFD / 370V) for proper torque and operation; always check the motor nameplate for specific ratings.
Will this motor replace a 100483-45?
Yes, 100483-45 is the manufacturer part number for the Lennox 13Y95, making it the direct functional replacement for that specification.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $107.56
-65%$107.56
$37.65Lennox 13Y95 Fan Motor
The Lennox 13Y95 Fan Motor is a high-performance direct drive condenser fan motor designed for precision airflow in residential and commercial HVAC systems. This OEM Lennox replacement motor (Part #100483-45) features a 1/10 HP output and operates at a synchronous 1075 RPM. Engineering specifications include a 208-230V single-phase electrical requirement at 60 Hz, pulling approximately 0.7 Amps. Built on a 42Y NEMA frame with all-angle ball bearings, it ensures reliable heat dissipation even in demanding outdoor environments. The motor utilizes a Permanent Split Capacitor (PSC) design and includes Class B insulation with an automatic reset thermal protector to manage internal temperatures during continuous duty. For contractors performing a field swap, verify the CW shaft-end rotation and 1/2-inch shaft diameter to ensure compatibility with existing fan blades. To maintain peak efficiency and prevent premature winding failure, it is standard practice to replace the run capacitor during installation.
Key Benefits for Technicians:- Genuine OEM Reliability: Exact Lennox 13Y95 drop-in replacement ensures mounting alignment and electrical matching without field modifications.
- Durable Construction: High-grade ball bearing system supports versatile mounting positions and extends service life in high-ambient conditions.
- Optimized Performance: The 1075 RPM 1/10 HP motor profile is calibrated for specific Lennox and Allied outdoor units to maintain factory SEER ratings.
- Thermal Protection: Integrated automatic reset overload prevents stator damage during voltage fluctuations or airflow restrictions.
What are the primary specs for the Lennox 13Y95?
This is a 1/10 HP condenser fan motor, 208-230V, 1075 RPM, 0.7 Amps, with a 42Y frame and CW rotation from the shaft end.
Is the capacitor included with the 13Y95 motor?
While the motor is a standalone component, it requires a PSC run capacitor (typically 5 MFD / 370V) for proper torque and operation; always check the motor nameplate for specific ratings.
Will this motor replace a 100483-45?
Yes, 100483-45 is the manufacturer part number for the Lennox 13Y95, making it the direct functional replacement for that specification.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
