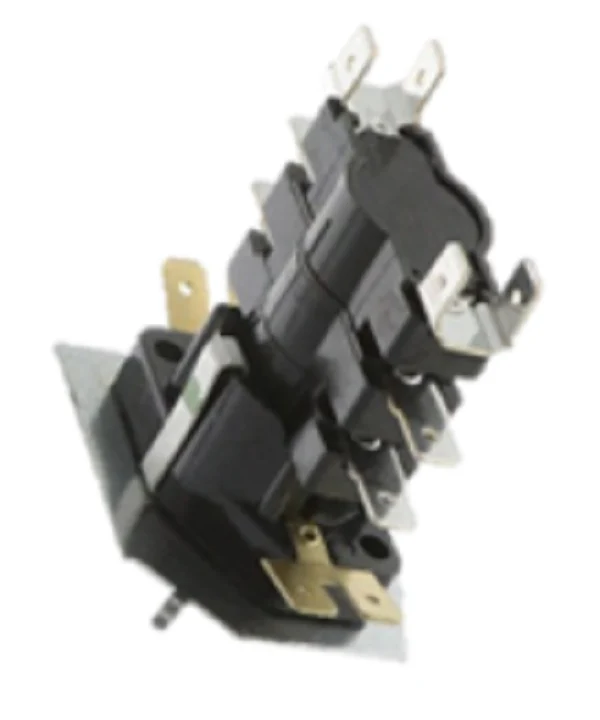

Lennox 12Y80 Sequencer
The Lennox 12Y80 Sequencer (OEM part number 104284-03) is a critical thermal sequencer relay used to manage staged heating in Lennox electric furnaces and air handlers. As a DPDT normally open component, it acts as a timing controller for 24V circuits, ensuring that heating elements and blower motors activate in a staggered sequence. This staged operation is vital for preventing massive inrush current and potential electrical overload on the job site. By coordinating the exact timing of the heat strips and the indoor blower, the Lennox 12Y80 ensures consistent discharge air temperatures and protects the system from thermal stress. This genuine Lennox OEM replacement provides 50/60 Hz compatibility and is often found in ECB29 and ECB25 series units. Professional installation of this 24V sequencer restores the precise delay timing required for multi-stage HVAC systems, maintaining high-efficiency performance and preventing premature component failure in both residential and commercial applications.
Key Benefits for Contractors
- Staged Load Management: Prevents electrical surges by sequencing the activation of high-draw heating elements.
- OEM Precision: Corrects timing issues with varied sequence delays specifically calibrated for Lennox air handlers.
- DPDT Configuration: Features double pole, double throw contacts to handle simultaneous control of heating stages and blower fans.
- Direct Compatibility: Replaces worn Lennox 104284-03 units without the need for mounting modifications or terminal rewiring.
- System Protection: Minimizes thermal cycling stress on electric heat strips, prolonging the life of the furnace.
Common Questions
What are the electrical ratings for this sequencer?
The Lennox 12Y80 operates on a 24V control circuit and supports standard 50/60 Hz frequencies, common in most Lennox electric heat applications.
Does this part control the blower motor?
Yes, this thermal relay is designed to sequence both the heating elements and the blower fan, ensuring the fan only runs when the elements are at temperature.
Can I use this in a non-Lennox unit?
While technical specs may align, this is a genuine OEM Lennox component engineered specifically for their proprietary sequence timing; always verify wire-to-terminal layouts before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $104.12
-65%$104.12
$36.44Lennox 12Y80 Sequencer
