Lennox 12X33 Arm

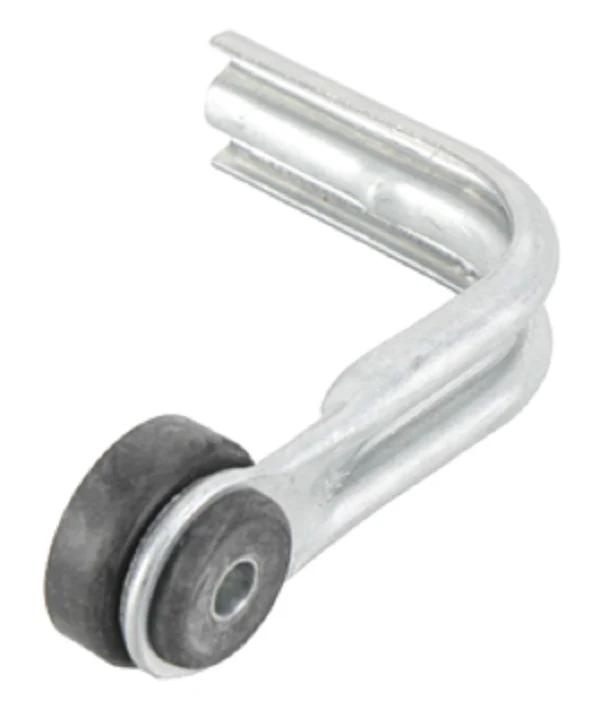

As a seasoned technician, you know that maintaining precise alignment in a blower motor assembly is non-negotiable for system longevity. The Lennox 12X33 motor mount arm (Model 102301-01) is engineered for high-demand industrial and commercial HVACR applications where vibration damping and structural integrity are paramount. With specific (A x B) dimensions of 3.344 x 2.810 inches, this single-leg HVAC motor mounting arm ensures a secure fit for compatible 3.3-inch frame motors. Weighing only 0.5 lbs but featuring industrial-grade construction, it effectively reduces mechanical stress on the motor shaft, preventing premature bearing failure and optimizing energy consumption. Whether you are performing a Lennox 102301-01 replacement or a routine system tune-up, this part provides the OEM motor support necessary to maintain factory-spec performance. This robust component is designed for versatile use in pumps, fans, and conveyors, facilitating easy installation and adjustments to hold the motor in a stable, fixed position within the housing.
Key Benefits:
- Precision Alignment: Engineered for exact 12X33 specifications to ensure vibration reduction in HVAC motors.
- Industrial Durability: Robust construction designed to withstand high-torque environments and thermal stress.
- Optimized Efficiency: Maintains proper positioning to minimize energy draw and mechanical wear.
- Versatile Compatibility: Fits a wide range of Lennox commercial and industrial motor systems.
Common Questions:
How do I verify if the 12X33 fits my current motor?
Confirm your motor's frame size and the mounting distance. This arm is specifically designed for (A x B) dimensions of 3.344 x 2.810 inches. Comparing these to your existing motor bracket specs is the most reliable method for ensuring a match.
What are the signs that a motor mount arm needs replacement?
Excessive noise, unusual vibration during start-up, or visible cracks in the arm's structural body indicate that the motor support bracket is failing and should be replaced immediately to avoid motor damage.
Can this arm be used in residential furnace blowers?
While typically found in industrial and commercial units, it functions in any system where the Lennox 102301-01 part number or matching dimensions are specified. Always check the service manual for the specific HVACR equipment model before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
